Mortar Penetration Strength Tester

LANGRY SJY-800B Penetration Strength Tester is a durable and precise instrument. It features a durable design and advanced components to ensure reliable performance.

Simplifies operation and improves efficiency with instant energy release.
Provides precise strength readings using standardized curves.
Quickly and conveniently assesses strength without damaging components.
Widely used in construction and engineering testing.

Description

Suitable for masonry mortar strength testing. The penetration method is based on the relationship between the depth of nail penetration into the mortar and the compressive strength of the mortar, using the lever force method, compressing the working spring to load, storing potential energy, and instantaneously penetrating the nail into the mortar. A field detection method that measures the penetration depth of the nail and converts the strength by combining it with the relevant strength measurement curve.

Main Features

The body adopts a lightweight design concept, making it more portable and easier to use.
The clip uses a six-petal design for multi-angle clamping, making it more convenient to install the test nail.
The innovative lever force application design simplifies the operation steps and improves work efficiency.
High-strength test nails and nail gauges are included, made from high-strength materials, making the test nails more durable.

Specifications

Name	Technical indicators
Penetration force	800±8N
Working stroke	20±0.1mm

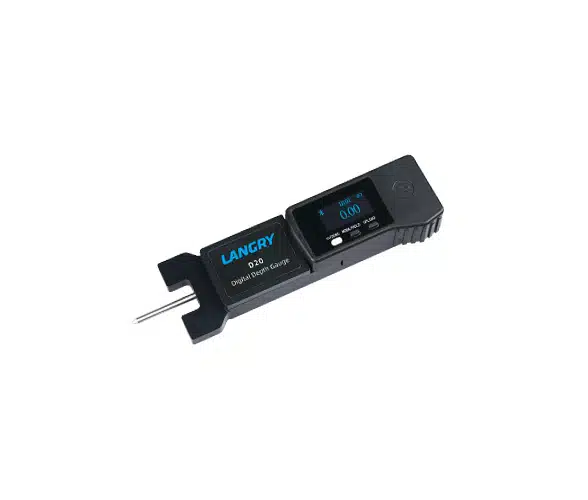

Digital measuring stick range	20mm + 0.01mm
Measuring nail length	40mm
Nail diameter	3.5mm
Gauge groove	39.5mm
