Description
The concrete durability is negatively influenced by the chloride ion penetration. This test method allows evaluation of chloride permeability characteristics of concrete. The test is performed to monitor the amount of electrical current passing through concrete cores or cylinders. A potential difference is maintained across the ends of the specimen, one of which is the negative end and is immersed in a sodium chloride solution, the other (positive end) in a sodium hydroxide solution. The total charge passed, in Coulombs, that is related to the resistance of the specimen to chloride ion penetration, is measured.
Two versions are available: model with 4 and 8 independent channels suitable to perform tests on up to 4 and 8 specimens contemporaneously.
For each specimen a test cell is necessary. Test cells are not included with the instrument and are proposed as separate accessories
58-E5204
Chloride penetration meter, model for 4 test cells.
110-230 V, 50-60 Hz, 1 ph
58-E5208
Chloride penetration meter, model for 8 test cells
110-230 V, 50-60 Hz, 1 ph
Technical Specs
- Testing up to 8 cells simultaneously
- Every channel is independent
- Programmable test duration
- Adjustable measuring rate starting from 1 minute
- Measurement and record of the test temperature during the whole test
- Measuring technique: transmitted current is measured and integrated over time in presence of 60V DC potential difference precisely applied and maintained constant
- 4.3” touch screen colour display
- Data storage on SD card
- Micro USB port to download data to PC
- Easy to use interface
- Test cells are not included (they shall be ordered separately, see accessories)
- Accuracy: +/-0.1V, +/-1mA
- 110-230V, 50-60Hz, 1Ph
Dimensions:
Instrument: 430×265 x150 mm
Cell: 165x155x50 mm (approx.)
Weight approx.:
Instrument: 5.7 kg
Cell: 2.2 kg
Accessories

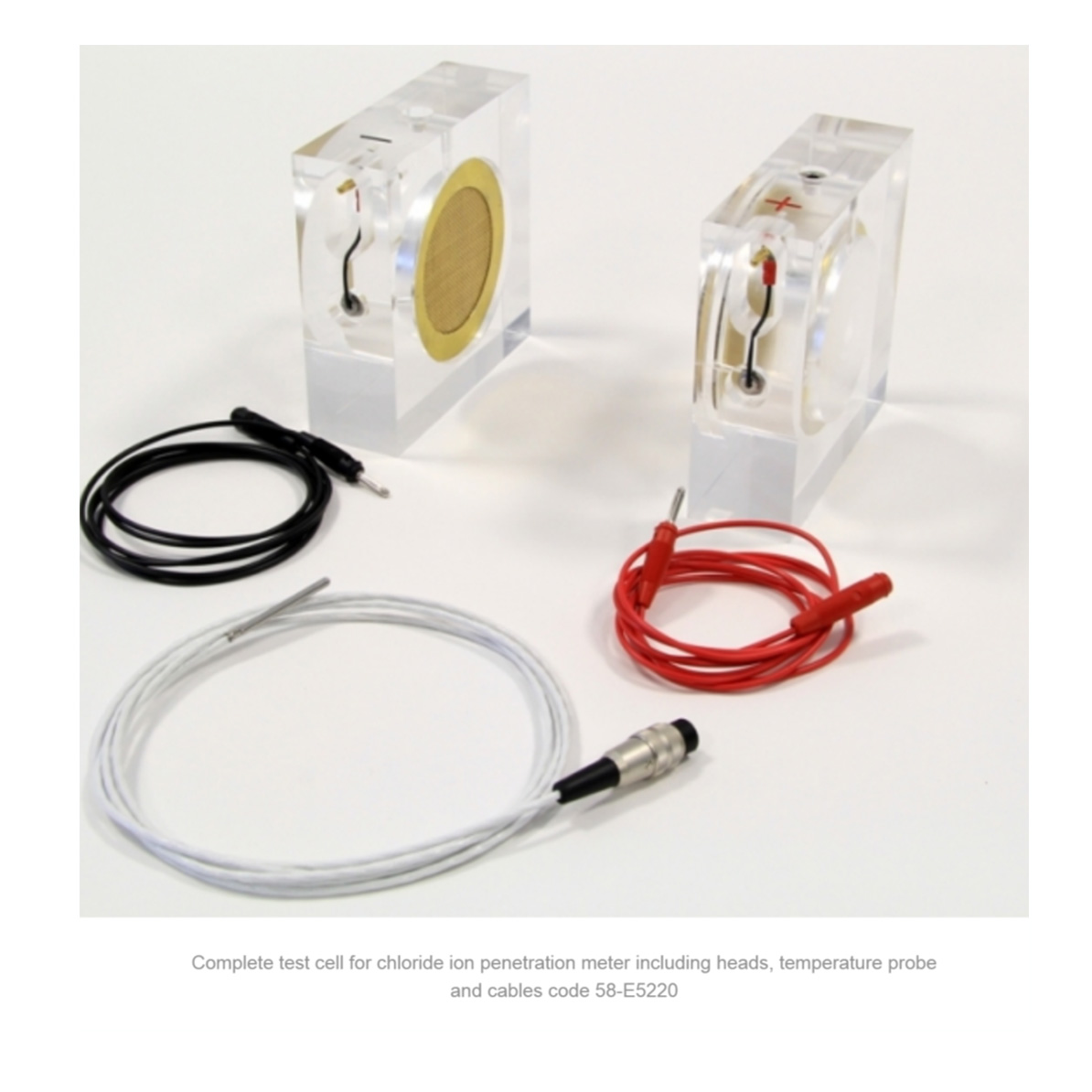

58-E5220
Complete test cell for chloride ion penetration meter including heads and cables. Compatible with instruments 58-E520x series
58-E0052/1
Vacuum saturation apparatus required by ASTM C1202 in order to fully saturate the specimen with water.
230V/50-60Hz/1ph
58-E0052/1Z
Vacuum saturation apparatus required by ASTM C1202 in order to fully saturate the specimen with water.
110V/60Hz/1ph
