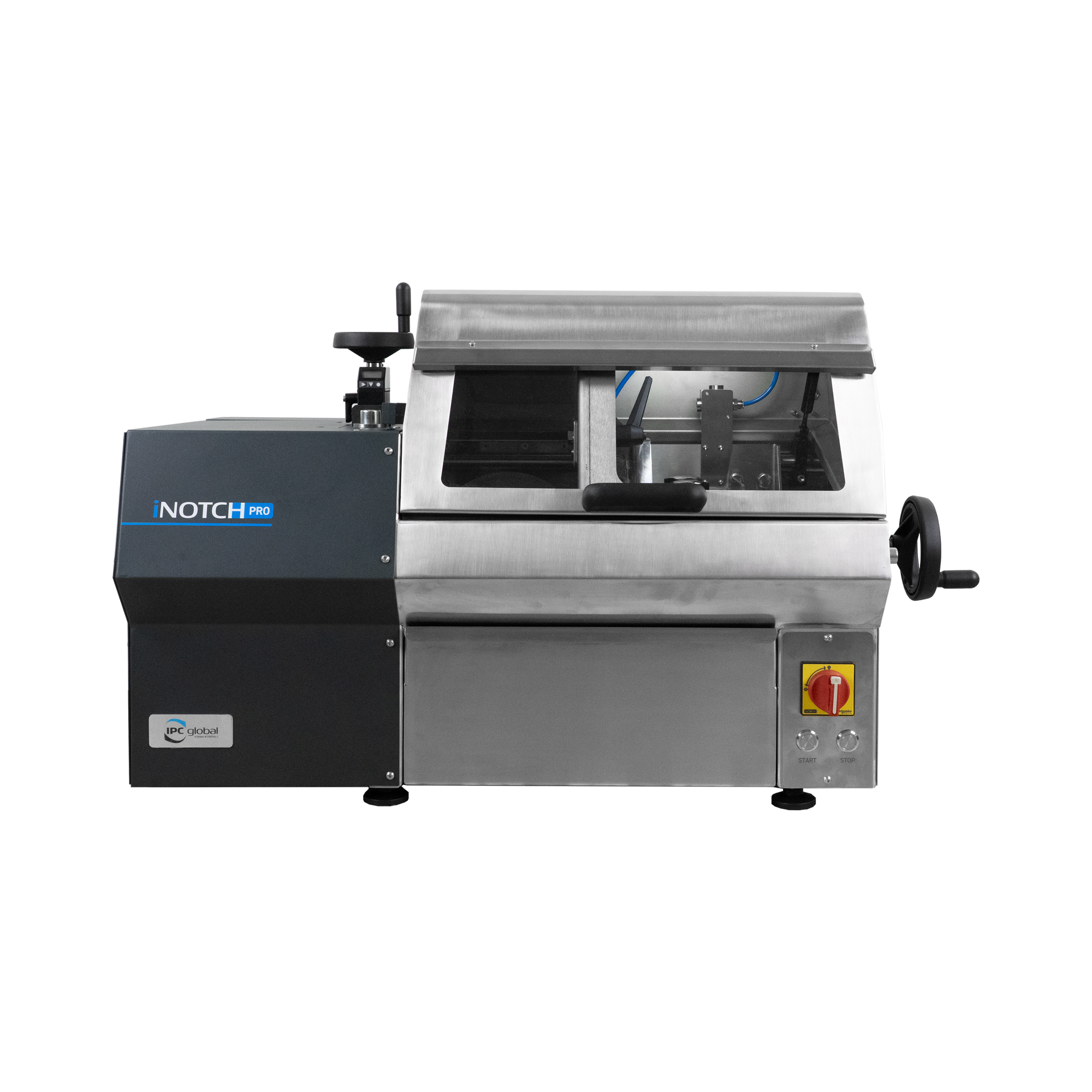

iNotch Pro – Notch cutting machine

Main Features

Designed to fulfil the relevant Standards’ stringent requirements for notch depth and width precision

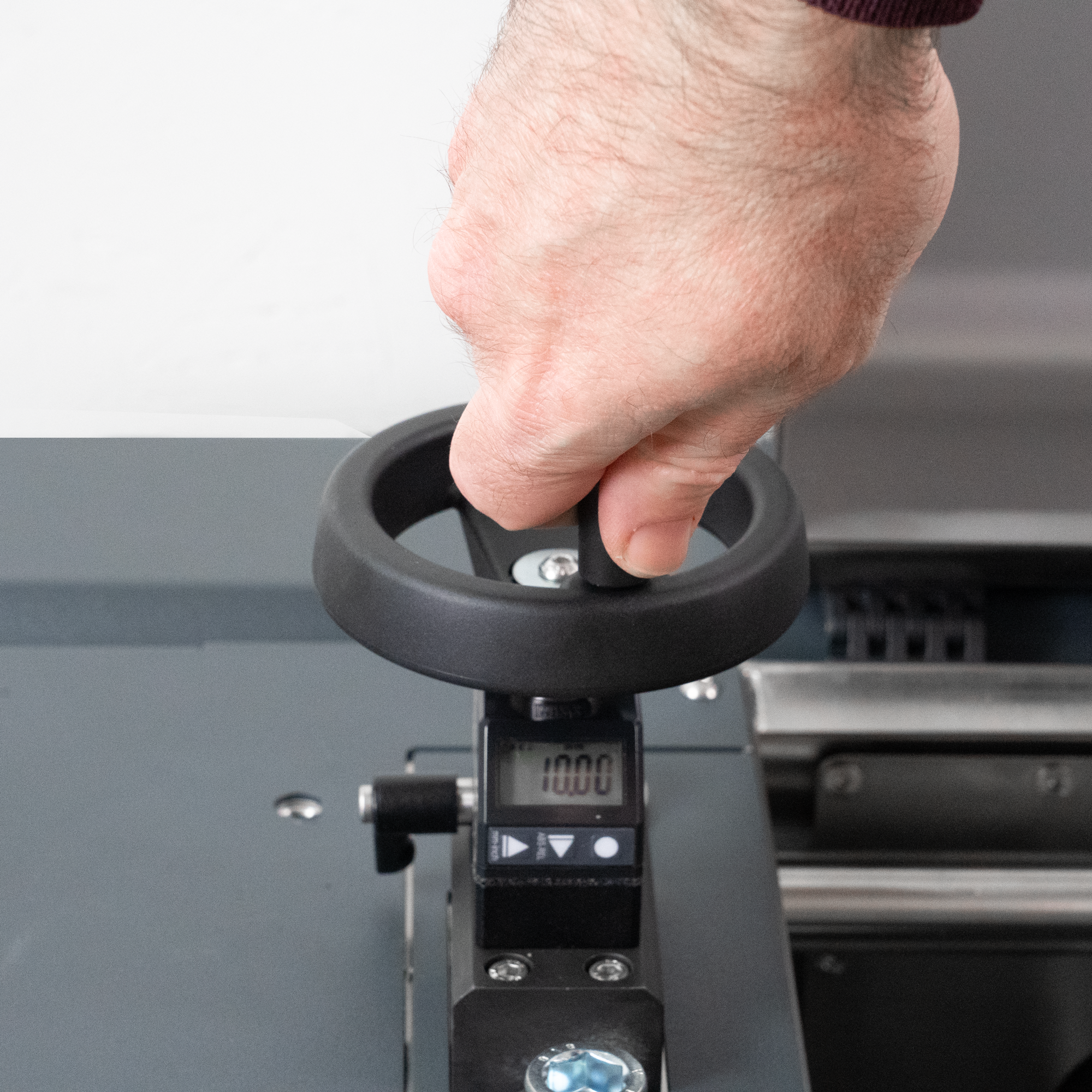

High resolution cut depth adjustment system.
Compact and lightweight, suitable for table mounting
Cylinders and semi-circular specimens can be easily sawn without any additional accessory

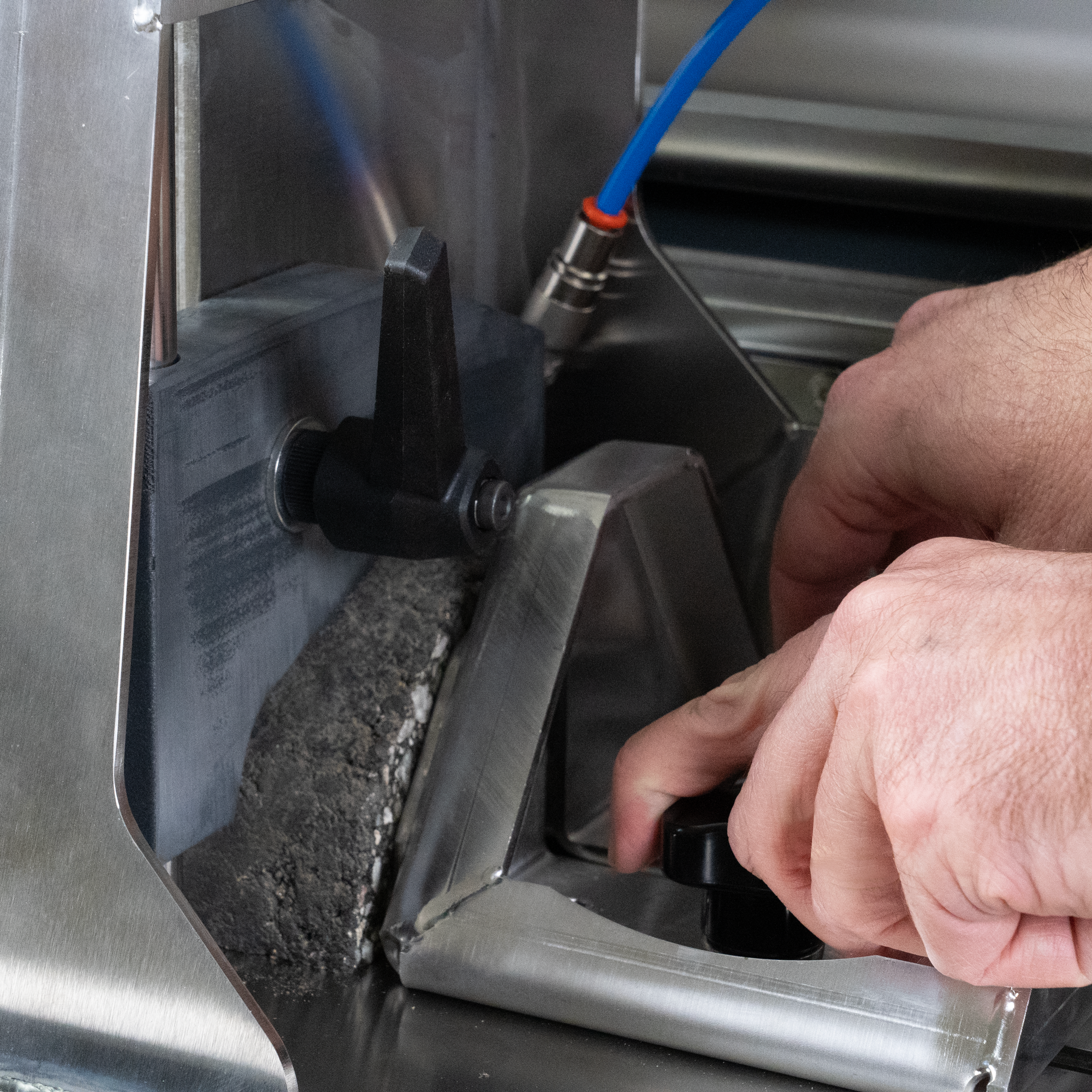

Unique clamping mechanism for all specimens, minimizing specimen damage
Manual advance and retraction of test specimen blade to home position.

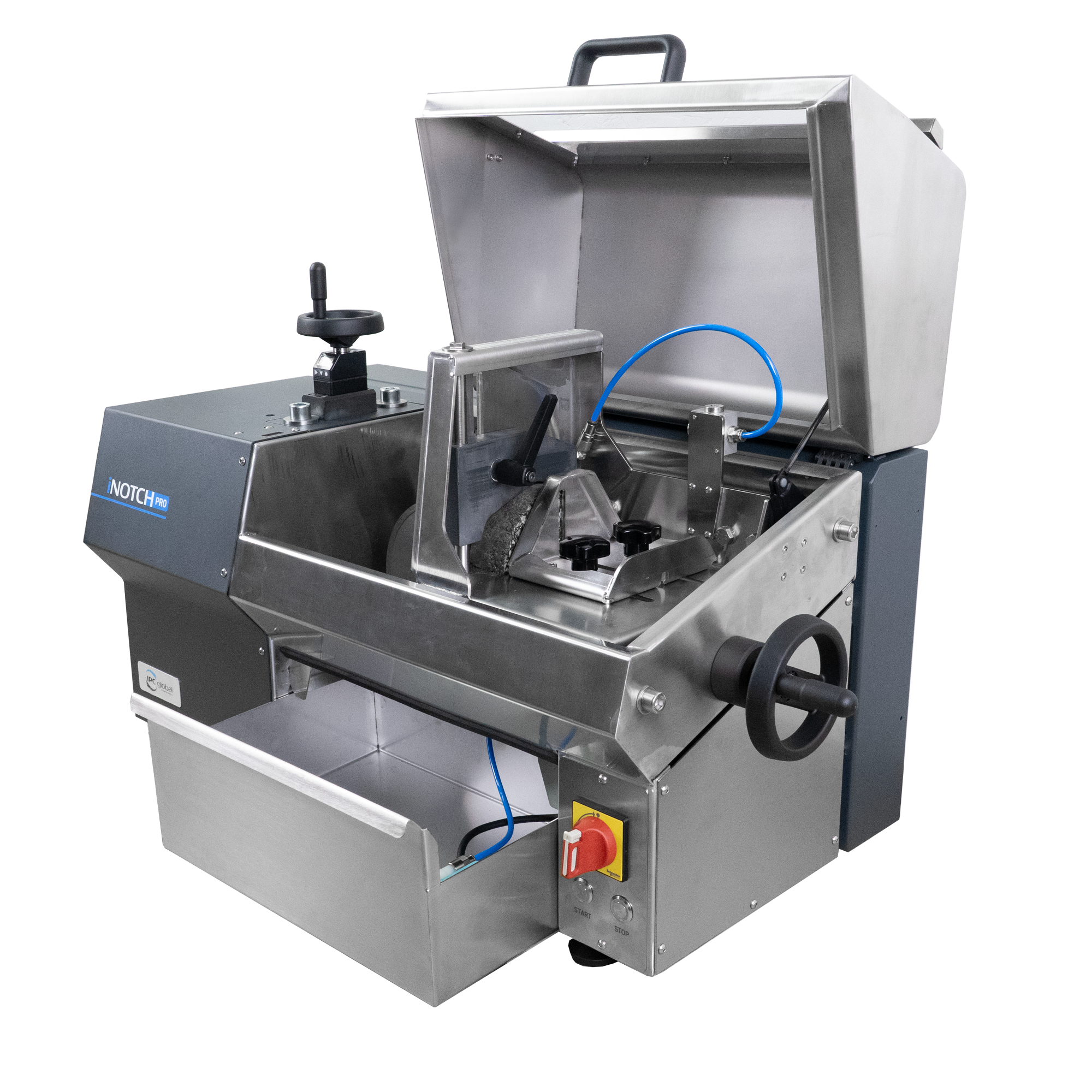

Integral protection cabinet with automatic locking access door to ensure unparalleled safety and clean operation in laboratory environments. The cabinet also works as a noise-reducing system.
Integrated light for clear visibility of the cutting area.
Integrated water-cooling recirculating system with filer and removable water tank for easy cleaning.
Water tray and all the parts in contact with water are made of stainless steel.

Description

The notch cutting machine iNotch Pro is designed to cut notches from cylindrical or semi-circular specimens with high accuracy and with completely safe operation. In particular, iNotch Pro is capable of:

Cutting notches in cylindrical specimens for Disk-Shaped Compact Tension test to ASTM D7313
Cutting notches in semi-circular specimens for Semi-Circular Bend Test to ASTM D8044, AASHTO T394/TP105, T393/TP124 and EN 12697-44
Cutting notches in semi-circular specimens for Fénix Test to NLT-383
Cutting user-defined notches in cylindrical or semi-circular specimens

Technical Specification

Blade diameter	200 mm
Blade thickness	1.00mm
Cutting depth	0 to 65 mm
Cutting depth resolution	0.01mm
Blade speed	2800-3360 rpm (50/60 Hz)
Max specimen dimensions	150mm dia. (cylinder or semi-circular) max thickness 100mm
Cooling system	Water recirculation pump and tank (included)
Power supply	2.5 kW
Voltage	230V / 50Hz / 1ph (77-PV47202)
Dimensions (L x W x H)	480 x 985 x 620 mm
Weight	30 kg
Fuse	10A
