Main Features
- Conforms to EN 12697-35
- Ideal to prepare laboratory samples for mix design
- New improved mixing drum and heating system quickly adjustable up to 250° C
- Mixing capacity up 30 litres
- Mixing speed adjustable from 5 to 35 rpm
- Mixing temperature adjustable up to 250°C
- Stainless steel (AISI 304) mixing container
- Temperature control by PT 100 probe
- Digital temperature display
- Easy unloading by motorized tilting system of the container
Description

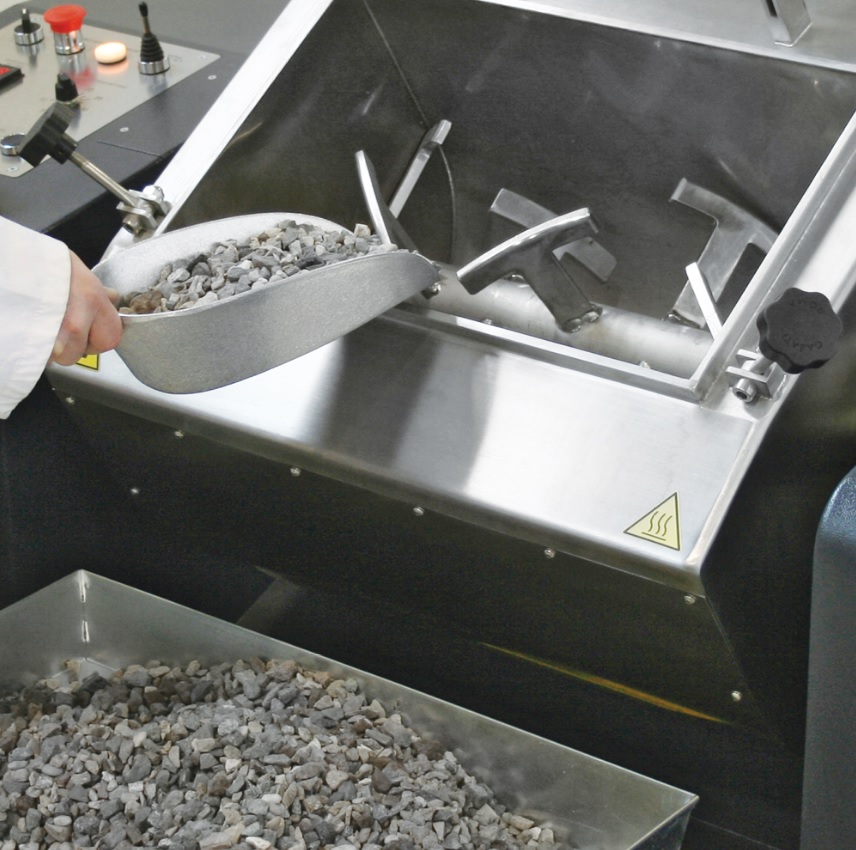

Equipped with state-of-the-art technology, the Automatic Laboratory Mixer takes the laborious and time-consuming task of mixing bituminous samples off your hands. Its intelligent programming allows for efficient blending of materials, ensuring homogeneity and eliminating human error.
With its user-friendly interface and customizable settings, it allows technicians to effortlessly meet testing standards and achieve reliable outcomes.
The design and testing of bituminous mixtures includes various laboratory tests such as:
- Marshall stability (EN 12697-34)
- Gyratory compaction (EN 12697-31)
- Slabs laboratory compaction (EN 12697-33) to prepare specimens for Wheel tracking (EN 12697-22)
- Determination of stiffness including Beam fatigue testing (EN 12697-26, EN 13108).
How to prepare your bituminous mixxture
To produce samples for performing the above tests, it is essential that the preparation of a bituminous mixture is carried out at a reference temperature and a limited time period in order to reduce mechanical degradation of the aggregates. The mixer shall also be capable of entirely coating all mineral substances in not more than 5 minutes as stated by EN 12697-35.
The BITUMIX Automatic Laboratory Mixer can be used as part of your Superpave performance based testing program
Technical Specifications
- Mixer capacity: 30 litres
- Mixing speed: adjustable from 5 to 35 rpm
- Mixing temperature: adjustable from ambient to 250°C
- Heater: 4500 W
- Temperature control: PT 100 sensor
- Tilting angle up to 130°
- Power: 7000 W (total)
- Voltage: 380-400V, 50 Hz, 3 ph or 220V, 60 Hz, 3 ph
- Overall dimensions: 1350 x 650 x 1205 (w x d x h)
- Weight: approx. 320 kg
Downloads
Ordering Information
| 77-PV0077/C | BITUMIX – Automatic laboratory mixer 30 litres capacity. 380V/50Hz/3ph |
| 77-PV0077/CR | BITUMIX – Automatic laboratory mixer 30 litres capacity. Complete with mixing tool with removable and adjustable blades. 380V/50Hz/3ph |
