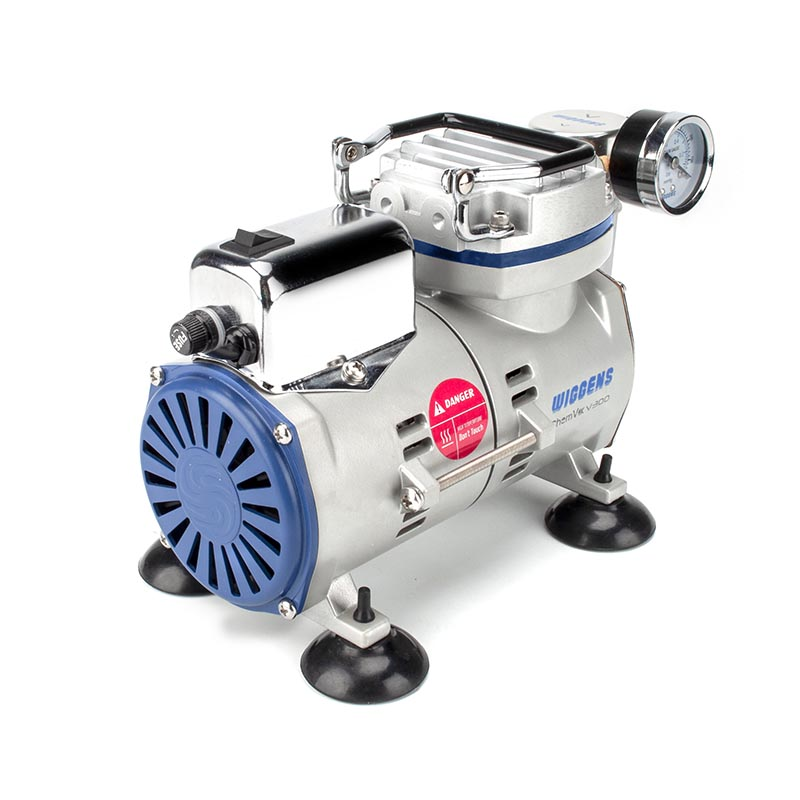

Main Features
No air pollution, maintenance free
Chemvak V series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
Moisture trap with filter cartridge
Chemvak V series pumps are equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.
Oil-free
The oil-free piston vacuum pump provides continuous, reliable, high flow vacuum for your container.
Vacuum regulator
Chemvak V series pumps are equipped with vacuum regulator to adjust vacuum.
Thermal protection device
Every motor of Chemvak V series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
Technical Specifications
| Model | V300 | V400 |
| Power (V/Hz) | 220/50 | 220/50 |
| Max. Power (W) | 60 | 80 |
| Max. Current (A) | 0.3 | 0.4 |
| Max. Flow Rate (L/min) | 17 | 34 |
| Motor Rotation (RPM) | 1450 | 1450 |
| Port Thread (mm) | 9 | 9 |
| Dimension W x D x H (mm) | 272 x 142 x 165 | 310 x 152 x 165 |
| Weight (kg) | 4.4 | 5.4 |
| Noise Level (dB) | 50 | 60 |
| Gauge Range (mmHg) | -760 to 0 | -760 to 0 |
Ordering Information
| 86-D2002/1.LOC | Vacuum Pump, Chemvac V300, 17 L/min |
| 86-D2002.LOC | Vacuum Pump, Chemvac V400, 34 L/min |
