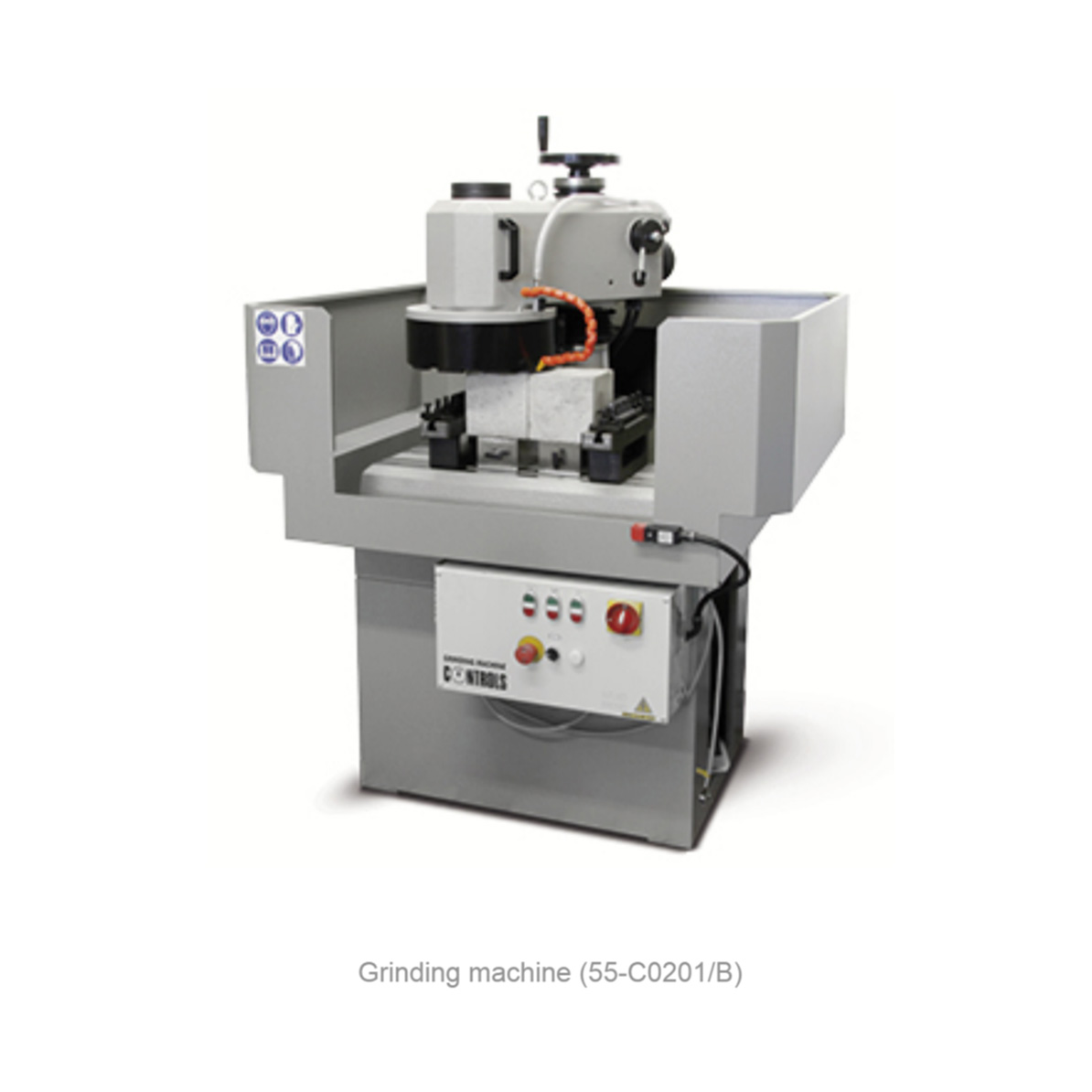

Description
Used to grind and polish concrete specimens, natural stones, ceramic materials, etc. Proposed in two versions:
- 55-C0201/B standard version in which the radial displacement of the grinding head is motor operated and actuated by a push button.
- 55-C0201/C Automatic version in which the radial displacement is fully automatic and controlled by travel limit switches.
All the other characteristics are identical.

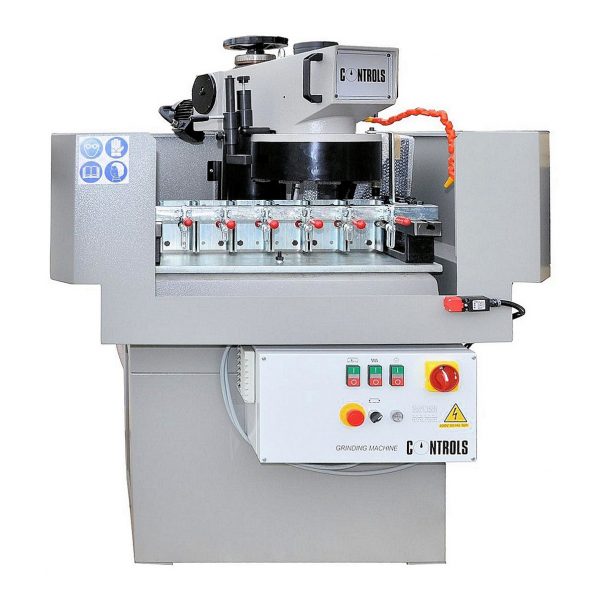

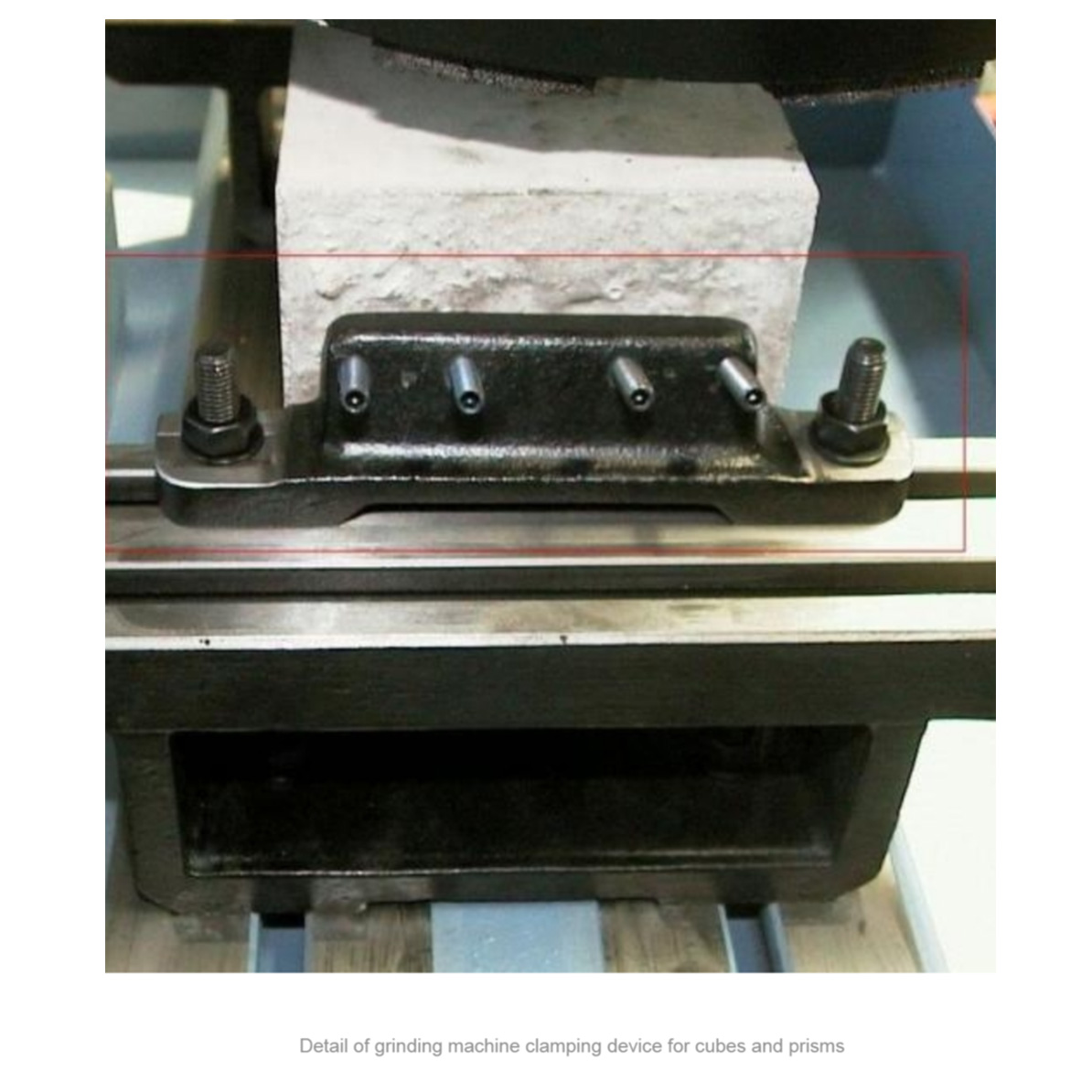

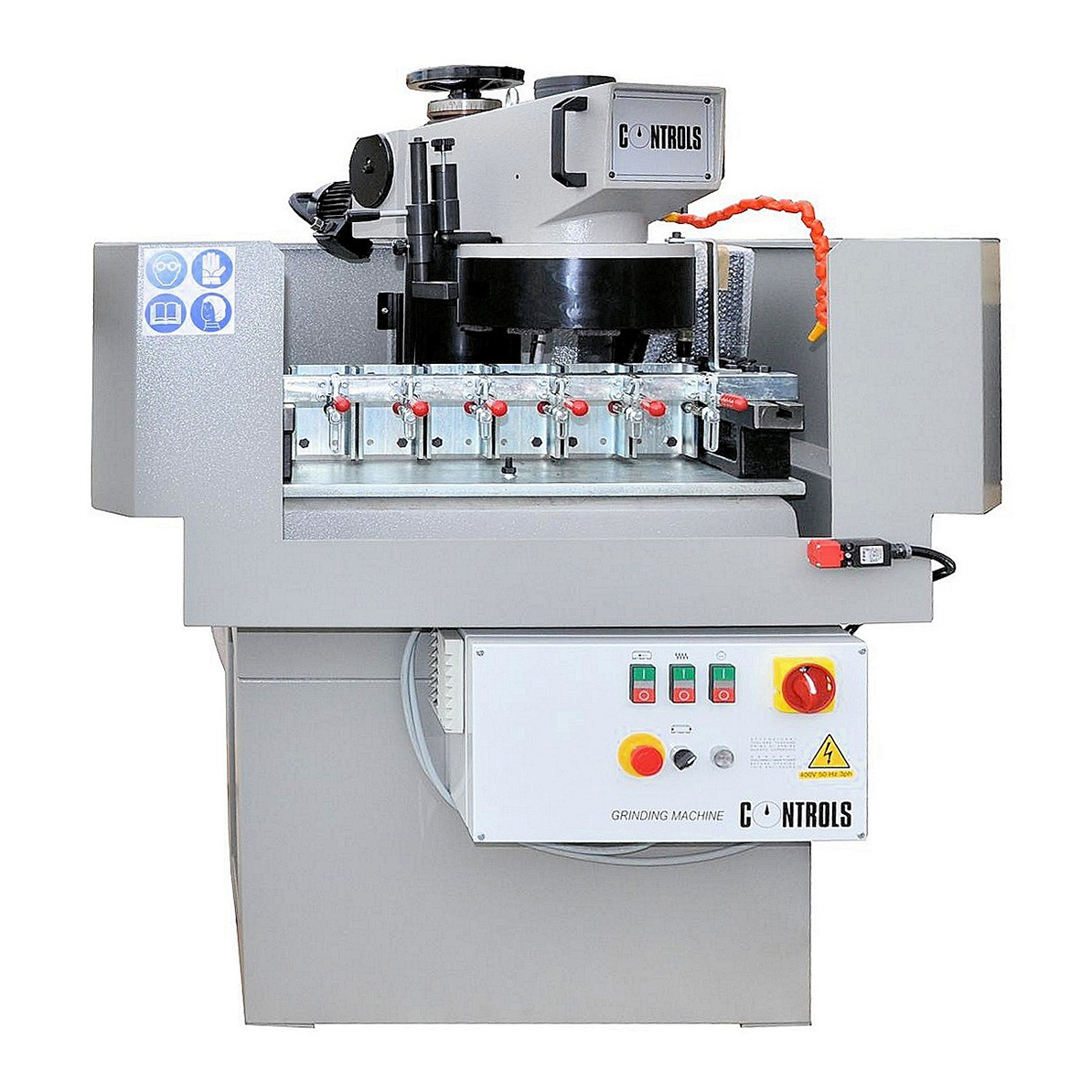

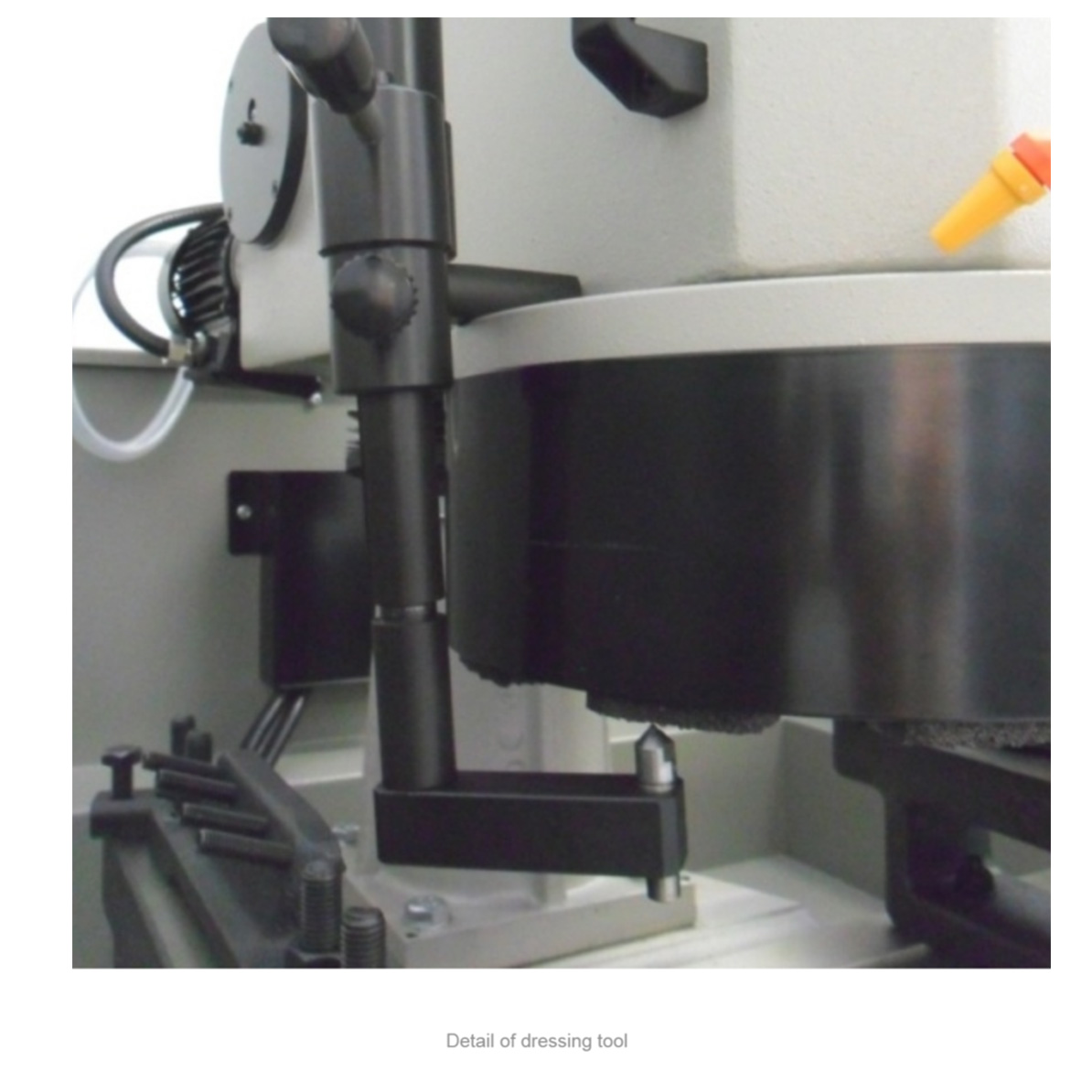

The cube and cylinder specimens can be easily locked on the table and the grinding head, 330 mm dia., can be radially moved either manually or automatically in both directions so, the only manual operation requested is the lowering of the grinding head by the top hand wheel. The machine is supplied complete with safety chip guard that, when removed, stop automatically the machine, with coolant tank, motor pump and one set of abrasive sectors. Diamond grinding sectors are available on request (see accessories). The machine is supplied complete with clamping element for 100, 150 and 200 mm cubes. Clamping devices for cylinders and device for dry grinding procedure are also available on request (see accessories). The 45-D0534/B and 45-D0534/C Core face preparation jigs can be easily fitted by the clamping element supplied with the machine.
Technical Specs
- Table dimension: 775×280 mm
- Grinding wheel dia: 330 mm
- Max vertical daylight: 350 mm
- Min vertical daylight: 145 mm
- Max specimen size: 200 mm cubes and 160×320 mm cylinders
- Machined surfaces: see schematic representation
- Grinding head stroke: 205 mm
- N° of grinding segments: 10
- Grinding wheel speed: 1400 r.p.m.
- Automatic cross feed in both directions (model 55-C0201/C only)
- Safety guard with door locking switch conforming to CE
- Total power: 2200 W
- Overall dimensions (lxwxh): 1200x1020x1640 mm
- Weight approx.: 350 kg
- Gross weight approx.: 415 kg
Accessories
55-C0201/B2
Set of 10 diamond impregnated sectors. Weight approx.
55-C0201/B3
Accessory to connect an aspirator for drying grinding procedure. Aspirator not included.
55-C0201/B4

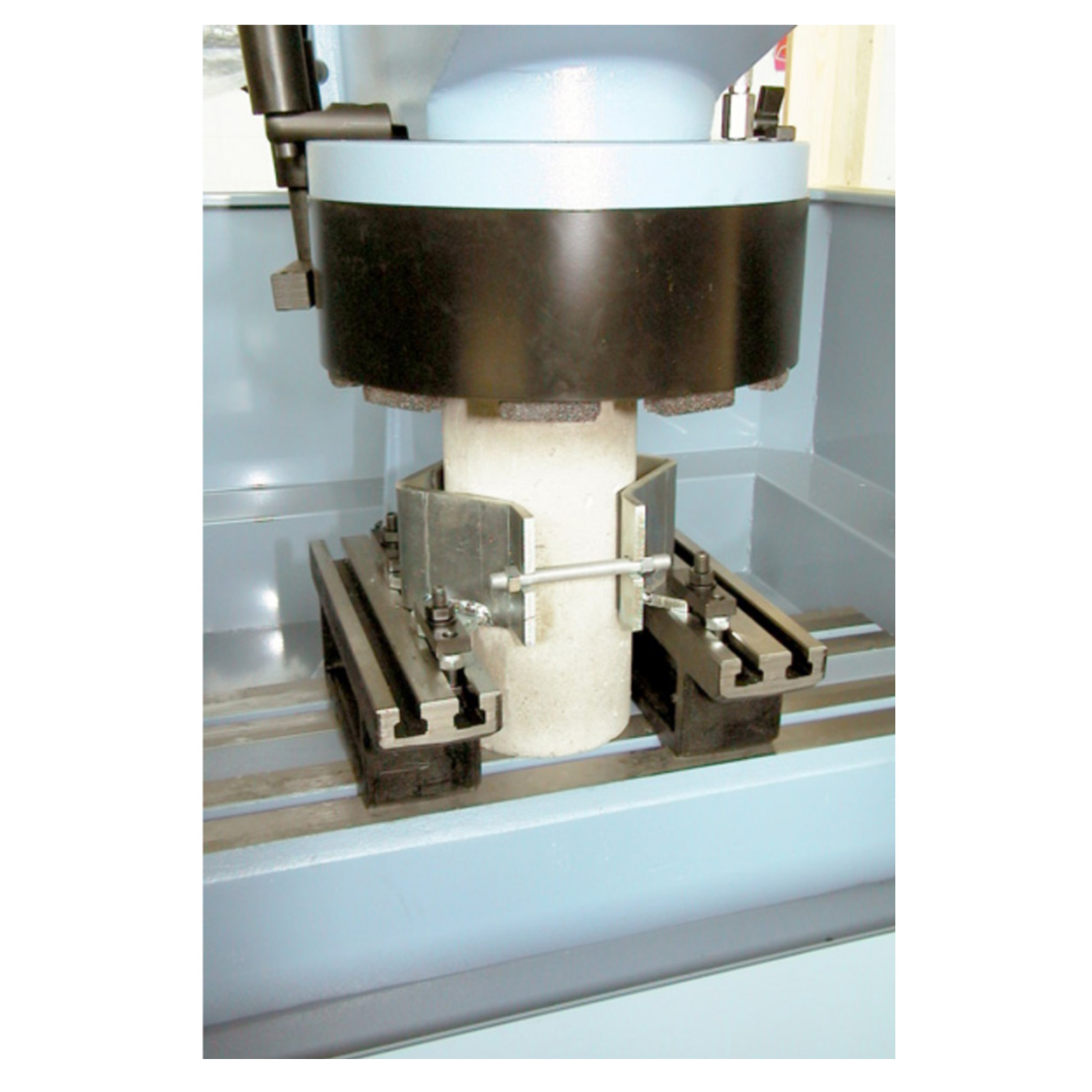

Clamping device for concrete cylinders from dia. 100×200 mm to 160×320 mm.
55-C0201/B6

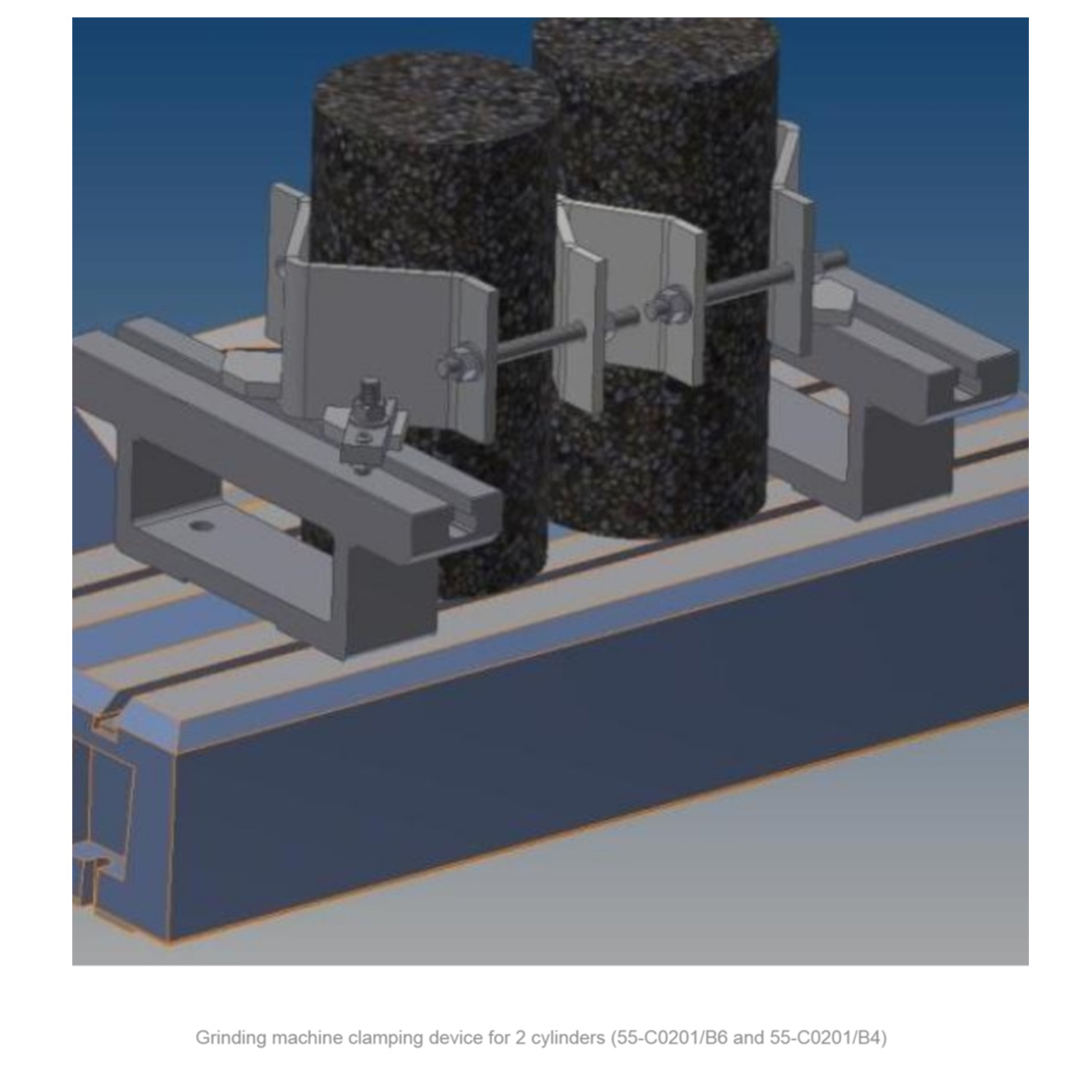

Device for clamping one additional cylindrical specimen from 100 up to 160
mm dia. It shall be used along with accessory 55-C0201/B4
55-C0201/B5
Clamping device for concrete cylinders from 50 to 100 mm dia.
55-C0201/B7
Device for clamping one additional cylindrical specimen from 50 up to 100 mm dia. It shall be used along with accessory 55-C0201/B5
55-C0201/5

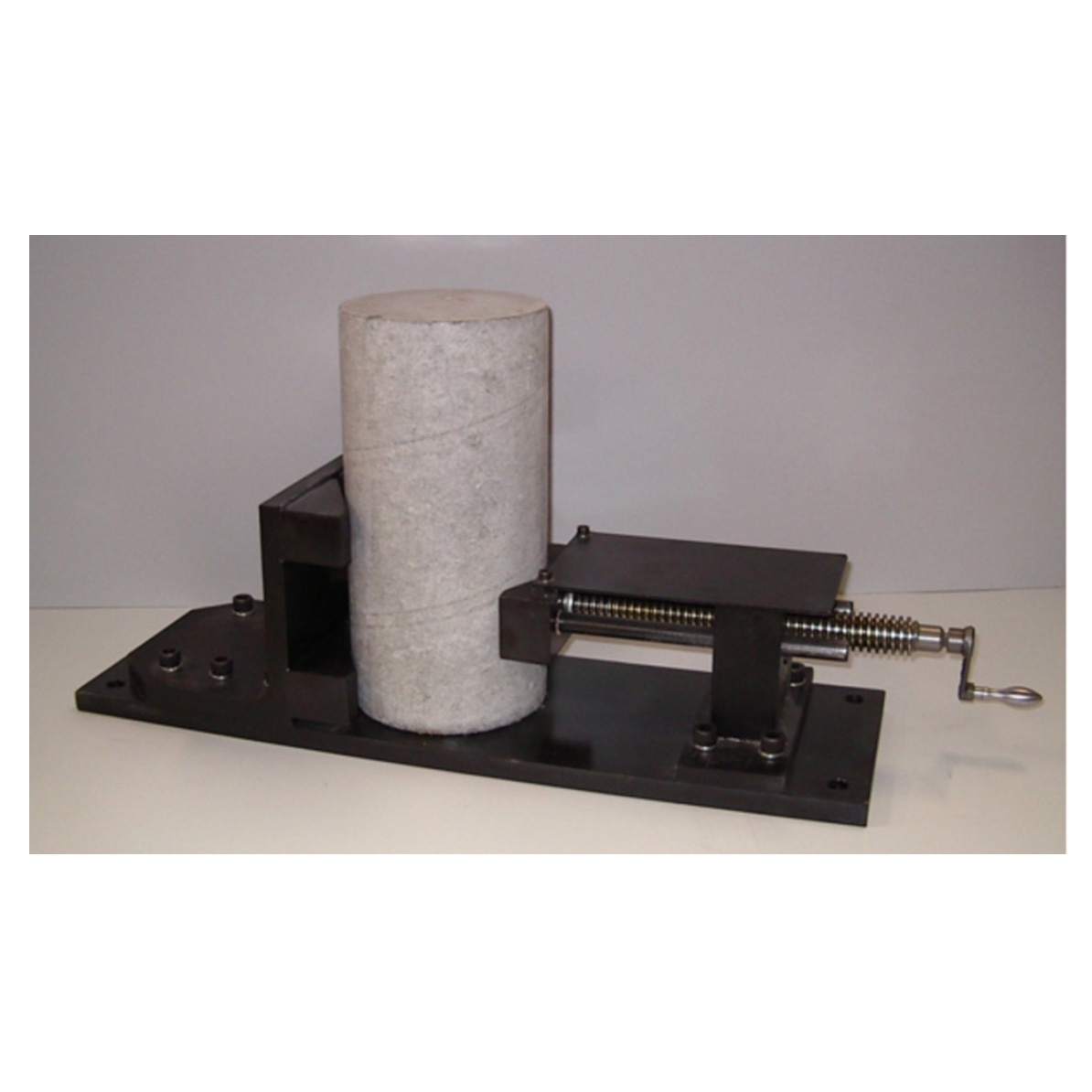

Clamping device, vice mounted, for concrete cylinders from dia. 100×200 mm to dia. 160×320 mm – as alternative to model 55-C0201/B4. Weight approx.: 30 kg.
45-D0534/B

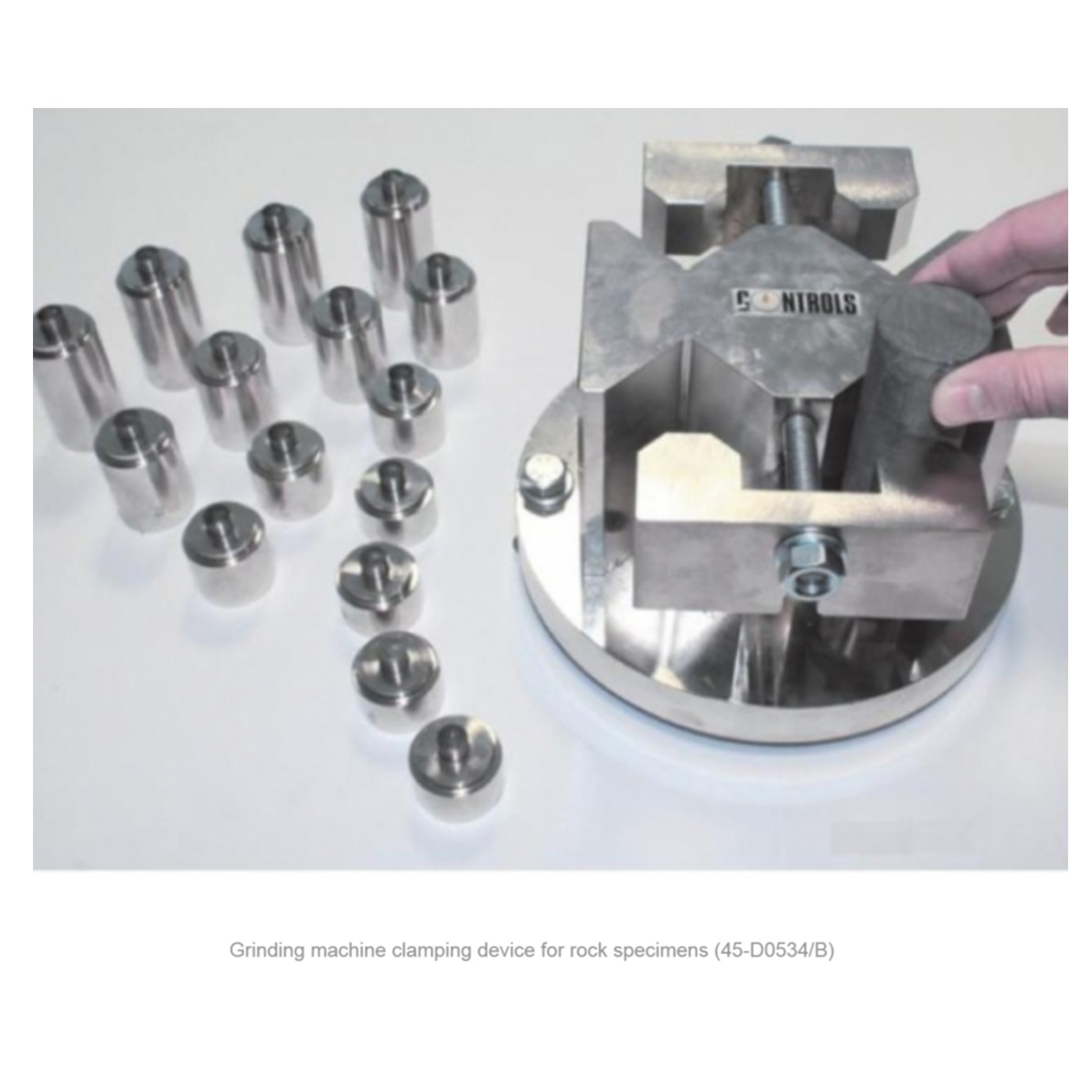

Core face preparation jig. For preparation of parallel and flat core faces using horizontal surface grinders (e.g. 55-C0201/B or 55-C0201/C). Consisting of a 4 place locking device capable of clamping core samples from 20 to 55 mm dia. It can be mounted on most grinding machines with or without magnetic chuck. Weight approx.: 6 kg.
45-D0534/C
Core face preparation jig. For preparation of parallel and flat core faces using horizontal surface grinders (e.g. 55-C0201/B). Consisting of a 2 place locking device capable of clamping core samples from 50 to 100 mm dia. It can be mounted on most grinding machines with or without magnetic chuck. Weight approx.: 12 kg.
Spares
55-C0201/B1
Spare set of 10 abrasive sectors
