Description

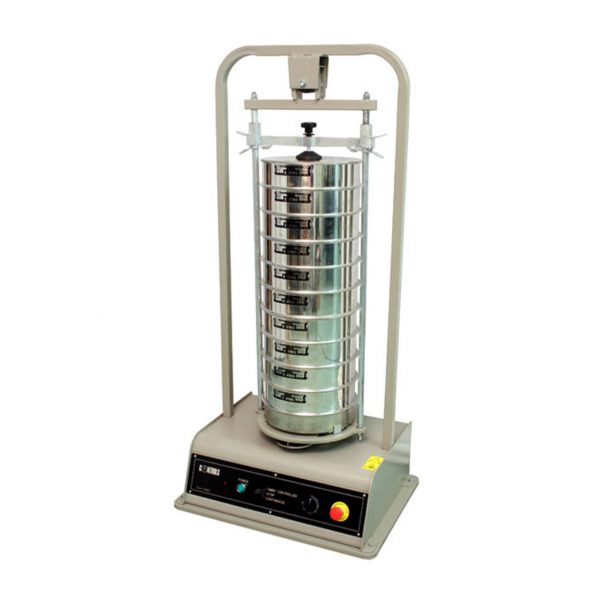

The CONTROLS electromechanical sieve shaker is a reliable and efficient shaker, widely used throughout the construction materials testing industry.
The sieve nest is held at the top by a rubber pad with spherical seat and rotates eccentrically at the bottom ensuring uniform shaking of the sample across the whole surface of the sieves.
Upon each revolution, a simple mechanical mechanism imparts hits at the base of the sieve column so as to move the sample on the sieve surface for a very efficient sieving action. The front panel includes the mains switch, the emergency stop button and timer.
The sieve shaker has to be fixed to the floor through the four holes at the base. A noise reduction cabinet is also available for housing the shaker (Refer accessories).
Main Features
- Double effect electromechanical sieving
- High sieve capacity
- For sieves up to 450 mm dia.
- Ergonomic and fast clamping system
- Timer function included
- Noise reduction cabinet available (see accessories).
- Wet sieving attachments available (see accessories).
Technical Specifications
| Model | 15-D0410 | 15-D0410/A |
| Sieve Capacity | Up to 12 x 200mm or 10 x 300 mm dia. sieves |
Up to 10 x 200 mm, 8 x 300 mm, or 6 x 450 mm dia. Sieves |
| Power | 200 W | 200 W |
| Timer Scale | 30 min | 30 min |
| Dimensions (L x D x H) | 66 x 50 x 51 cm | 74 x 64 x 51 cm |
| Weight approx. | 60 kg | 70 kg |
Ordering Information
| 15-D0410 | Electromechanical Sieve Shaker for sieves up to 300 mm dia. |
| 152-D0410/A | Electromechanical Sieve Shaker for sieves up to 450 mm dia. |
Accessories
| 33-T3000/CB | Controls Noise Reduction Cabinet for sieve shaker model 15-D410 |
| 15-D0407/B.CAB.LOC | Geo-Con Noise Reduction Cabinet for sieve shaker model 15-D410 |

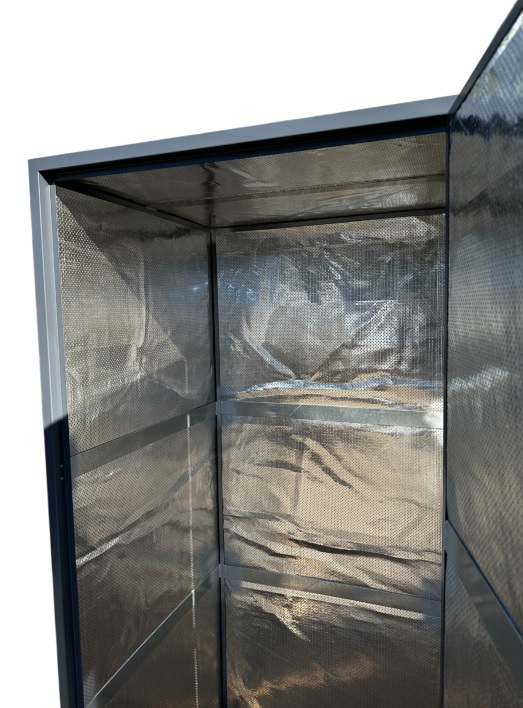

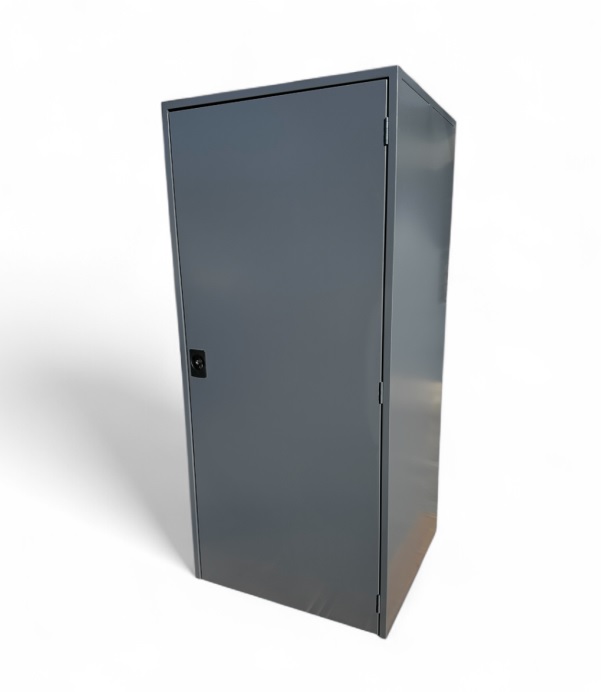

| 15-D0407/B.CAB1.LOC | Geo-Con Noise Reduction Cabinet (powder coated) for sieve shaker model 15-D410 |
| 15-D0400/B1 | Wet Washing Sieve Attachment for 200 mm dia. sieves |
| 15-D0400/B3 | Wet Washing Sieve Attachment for 300 mm dia. sieves |
