DWT Universal AASHTO/EN Double Wheel Tracker

The AASHTO/EN version of the Double Wheel Tracker for Hot Mix Asphalt (HMA) is used to evaluate the rutting resistance and moisture susceptibility of asphalt pavement EN and AASHTO standards.

This universal version complies either to AASHTO or EN standards being equipped with both stainless steel and rubber wheels, and performing the test in air or water. This solution is particularly suitable for research laboratories.



Main Features

  • Full conformity to EN, DOT methods (including TxDOT TEX-242-F) and AASHTO T324-19, including sinusoidal movement (RMSE certificate available on request) and rut depth measurement in 11 defined points
  • Fully automatic test performance on two specimens or one specimen
  • Variable wheel speed from 20 to 30 cycles/min
  • Fixed table, mobile wheel 230 mm travel
  • Wheel load of 700/705 N or adjustable from 700 to 1500 N
  • Temperature range from ambient to 80°C (±0.5°C)
  • Accurate temperature control (±0.5°C) for both in water and air test
  • Ruth depth transducers feature 50 mm travel, 0.01 mm accuracy
  • Direct rut depth measurement system, with transducers axially mounted in alignment with the wheel’s centre
  • Motorized wheel-assembly lifting system for easy removal of slabs
  • Free access to the wide testing area
  • Optional independent lifting system for double or single wheel testing
  • Slab mould size of 400×300 mm, 360×300 mm (for 320×260 mm slabs), double 150 mm gyratory compactor cylinders, 200 mm/8″/10″ diameter cores
  • Slab thickness adjustable from 40 to 100 mm (in 10 mm steps)
  • Extensive use of stainless steel in the machine’s construction; not limited to the parts in contact with water
  • Laptop PC control with dedicated software including results performance, test database management and multiple test elaborationAutomatic water filling and levelling system, no need to adjust or control the water level above the specimen during test
  • The software includes the possibility to program pre-heating and machine start (without operator intervention) and to measure the rut depth measurement in user-defined positions for research purposes or local specifications

Description

This  version can be upgraded with automatic system which lift one of the wheel from the specimen that has reached the rut target continuing the test on the other specimen. See Upgrading options Automatic wheel lifting mechanism.

The Double Wheel Tracker can be used as part of your SuperPave performance based testing program.

Machine body
Sheet steel, powder coated. Transparent sliding doors.

Loaded wheel system
This Universal model is fitted with double stainless steel wheel, 203 mm dia. x 47 mm wide, and double solid rubber tyre, 203 mm dia. x 50 mm wide.
The wheel load is adjustable in 100 N steps from 700 to 1500 N (for 77-PV33D05-06 only). The system includes a motorized lifting system of the wheel assembly at the end of the test.

Wheel tracking carriage
The wheel is moved 230 mm backwards and forwards on the top of the slab, which is fixed. The speed is adjustable via the PC from 20 to 30 cycles per minute (40 to 60 passes). The longest slab dimension is oriented to the wheel’s direction of travel. Special slab moulds for circular samples obtained from coring or gyratory compactors are also available. See accessories.

Temperature control system
The AASHTO Hamburg type Standard states that the test must be performed in a water bath over a range of 25 to 70°C ± 1.0°C, whilst the EN requires either air or water environment. In both systems a water level of about 20 mm above the sample has to be maintained. Where a heated air environment is specified, the specimen, during testing, must be maintained at uniform and constant specified temperature ± 1° C.  All versions fully satisfy and exceed  the above requirements: the temperature accuracy is ±0.5°C.

Temperature controlled cabinet
The Universal AASTHO/EN versions feature an inbuilt temperature controlled cabinet for testing in air or in water, designed to avoid condensation problem (in water testing) and prevent over temperature which may damage the mechanical parts or alter the transducer accuracy. Furthermore the system ensure thermal stability and provides rapid test start when the conditioned temperature has been reached.

Impression measurement system
Each wheel is fitted with linear transducer measurement system for deformations 0 to 50mm ±0.01mm.

Technical Specifications

  • Displacement motion: the arm is moving and the carriage is fixed
  • Wheel travel: 230 mm
  • Wheel speed: variable from 20 to 30 cycles/min
  • Wheel load: 700/705 N by weigths (78-PV33B05/6 models), adjustable from 700 to 1500 N in 100 N steps (78-PV33D05/6 models)
  • Temperature range: ambient to 80°C, ± 0.5°C
  • Rut depth transducer range: 50 mm, 0.01 mm accuracy
  • Moulds: not included, to be ordered separately
  • Slab thickness: adjustable from 40 to 100 mm in 10 mm steps
  • Overall dimensions (w x d x h): 1540x1020x1600 mm
  • Weight approx.: 600 kg
  • PC and software: included
Standards AASTHO T324 / EN 12697-22 / TEX-242-F
Testing mode In air and water
Description DWT, Hamburg and EN type, double wheel tracker, interchangeable wheels (steel for AASTHO and rubber for EN), wet and dry conditioning
Material and dimensions (diameter per width) of the two loaded wheels Stainless steel 203×47 mm
Rubber tyre 203×50 mm
Temperature control method (accuracy ±0.5°C for both water and air) Air: Three 1200 W electronically controlled air blowers
Water: Three 1500 W heaters, re-circulating pump, automatic feed and control level
Power rating 5500 W

Download Brochure (PDF)

Watch this short video on how to perform the asphalt deformation test with IPC Global’s Double Wheel Tracker:

Ordering Information

78-PV33B05 DWT Wet and Dry double wheel tracker. Conforming to AASHTO T324 and EN 12697-22 Small Size Device, air and water conditioning. Complete with both stainless steel and rubber wheels, PC, software and transparent sliding doors. 380V/50Hz/3ph+N
78-PV33D05 DWT Wet and Dry double wheel tracker, to AASHTO T324 and EN 12697-22, air and water conditioning. Wheel load adjustable up to 1500 N. Complete with stainless steel and rubber wheels, PC, software and transparent sliding doors. 380V/50Hz/3ph+N

Accessories

Independent Lifting System

78-PV3UP10 System for the independent lifting of the loading wheel at the rut target, continuing the test, without interruption, with the other wheel.

Temperature Probes

78-PV3UP20 Couple of additional temperature probes for monitoring the two samples temperatures.

Mould and Tray Sets

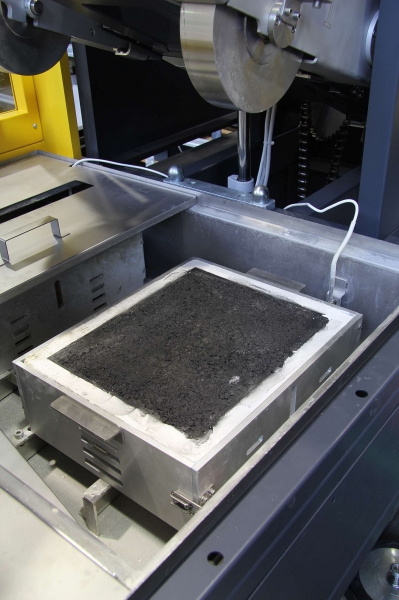

78-PV3/001 Set of two moulds 400×300 mm for PAVELAB DWT Double wheel tracker
78-PV3/002 Set of two moulds 360 x 300 mm (suitable for 320×260 mm slabs) for PAVELAB DWT Double wheel tracker
78-PV3/005 Set of trays with handles for 150 mm diameter cylindrical samples, conforming to AASHTO T324. Adaptors for 150 mm dia. cylindrical sample to be ordered separately (see accessory 77-PV3/003)
78-PV3/011 Set of two moulds 400×300 mm for PAVELAB DWT Double wheel tracker model 77-PV33D05 and 77-PV33D06, maximum sample height 120mm
78-PV3/012 Set of two moulds 360×300 mm for PAVELAB DWT Double wheel tracker model 77-PV33D05 and 77-PV33D06, maximum sample height 120mm

Additional Covers

78-PV3UP40 Upper closing panel made from transparent plastic for DWT machine

Calibration Certificates

78-PV33B00/CAL Set of traceable calibration certificates for 78-PV33xxx air and water conditioning wheel tracker (including load, two displacement transducers, wheel speed/frequency, tyre hardness – if applicable, air temperature and water temperature).
