Description
Geo-Con’s new Compact Portable Magnetic Vibrating Table has been developed following feedback from the concrete testing industry to take up less of valuable working space in vehicle trays. The magnetic bed is ~14 cm higher than our standard table, but it has an overall smaller footprint at only 43.5 x 29 cm.
The compact design allows also for better space management in the case of custom vehicle tray fitouts.

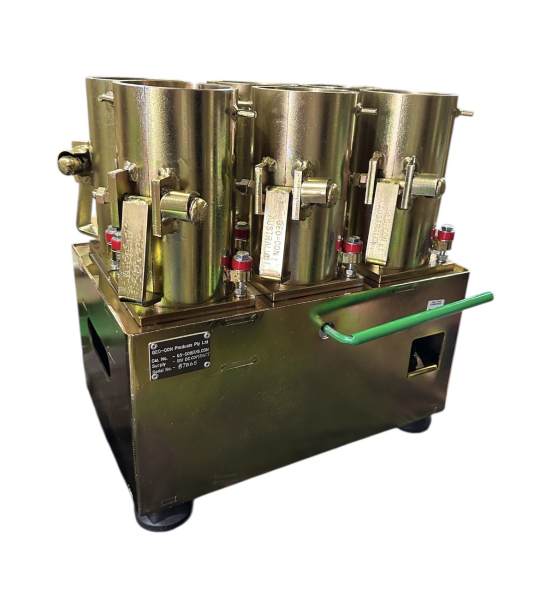

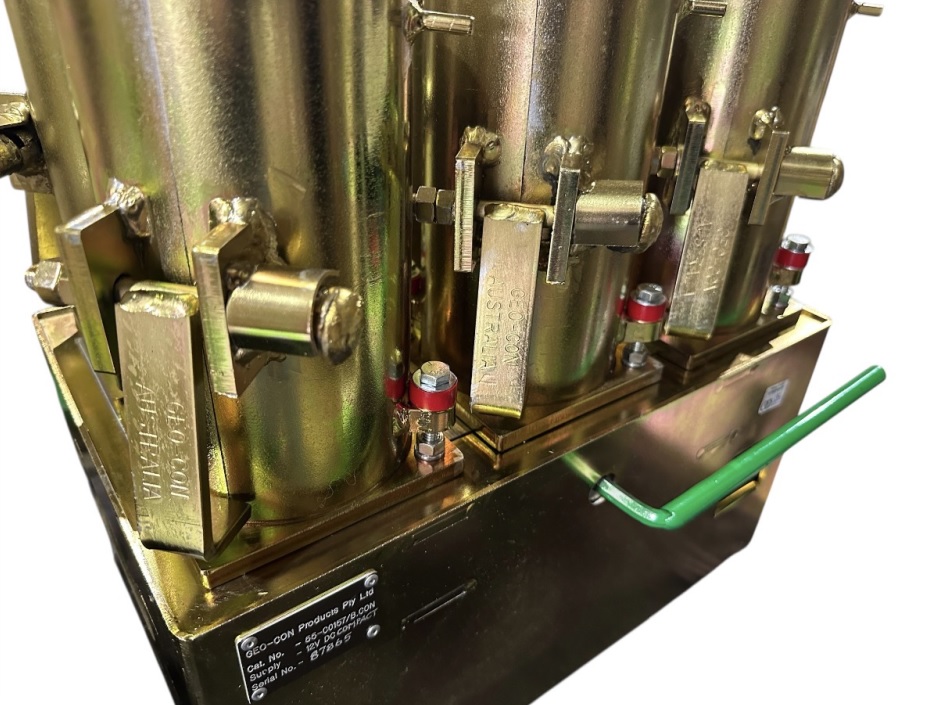

Like our standard table, the Compact Portable Magnetic Vibrating Table makes light work of casting concrete specimens in the field. The magnetic bed means there are no problematic clamps to deal with; simply turn the lever to engage the powerful magnet, securing the moulds firmly in place. Press and hold down the enclosed toggle switch to activate the vibration and compact the concrete.
The robust design and build allows extended use and reliability over time. Fully compliant with AS 1012.8.1.
Main Features
- Small footprint – 43.5 x 29 cm
- 12 V power supply
- Adjustable height rubber feet

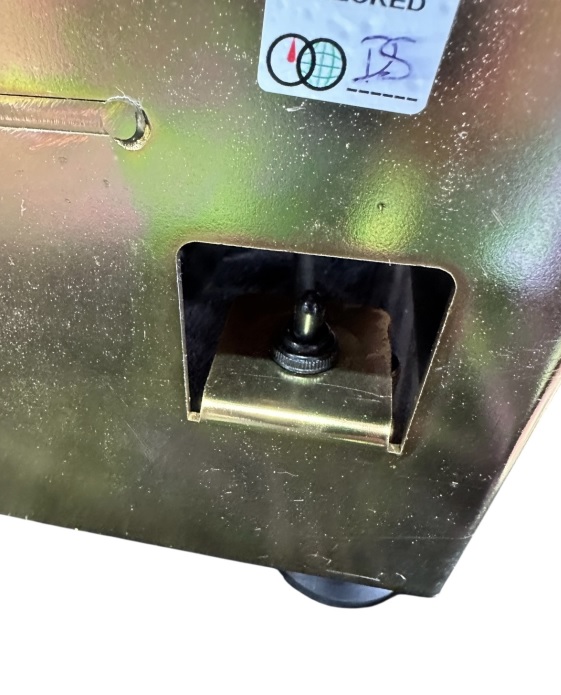

- Enclosed momentary toggle switch
- Super-strong permanent steel magnet
- Enclosed 50Hz motor, allows for easy washing down

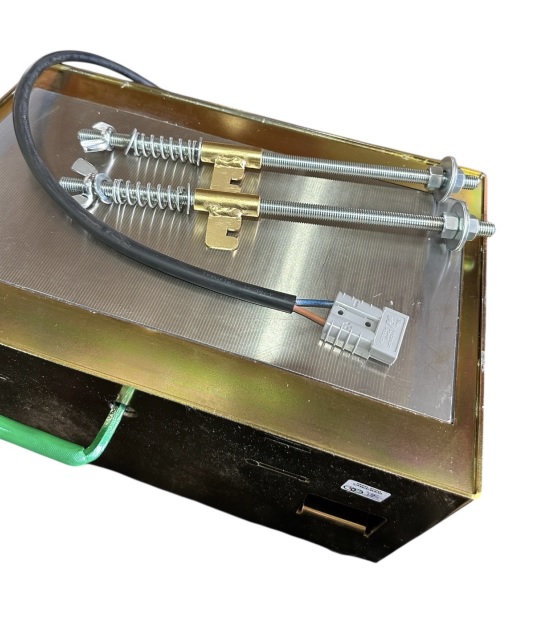

- Supplied with hold-down fixtures for secure transport in vehicle tray
- Australian Made
Specifications
| Overall Dimensions | 43.5 x 29 x 25cm (L x W x H) |
| Tabletop Working Area | 42.5 x 28 x 25 cm (L x W x H) |
| Max. Mould Capacity (Geo-Con moulds) | 6 |
| Motor | 12V 50Hz |
| Plug | 12V Anderson |
| Weight | 48kg approx. |
Ordering Information
| 55-C0157-COMPACT.CON | Compact Portable Magnetic Vibrating Table for Concrete |
