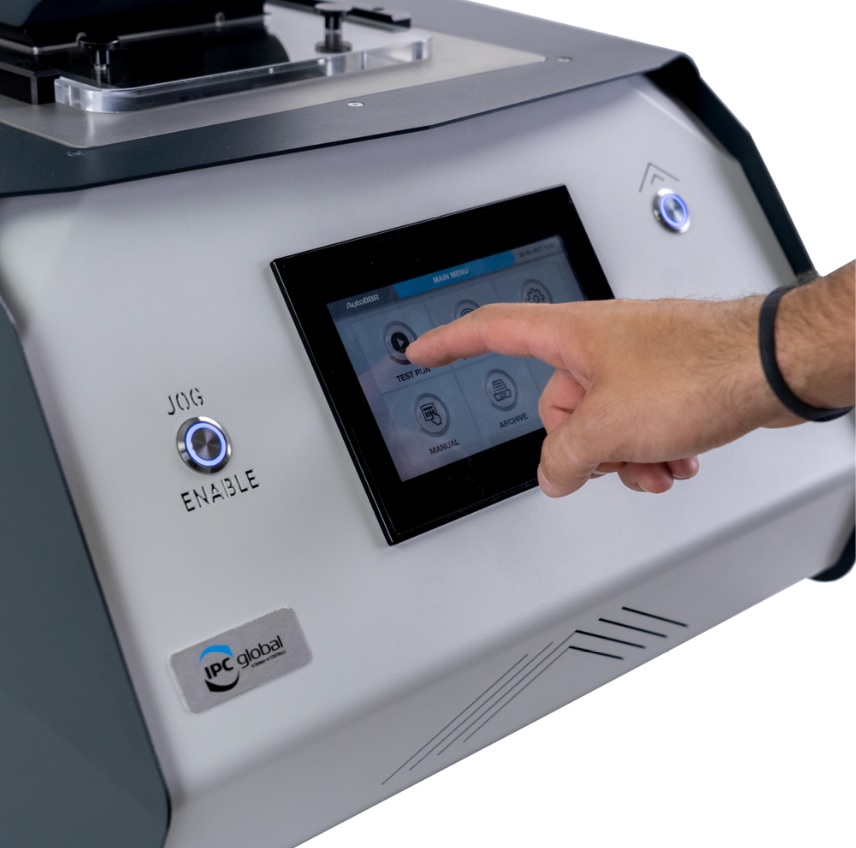

Test setup by large touchscreen display - AutoBBR Automatic electromechanical Bending Beam Rheometer
AutoBBR Automatic electromechanical Bending Beam Rheometer

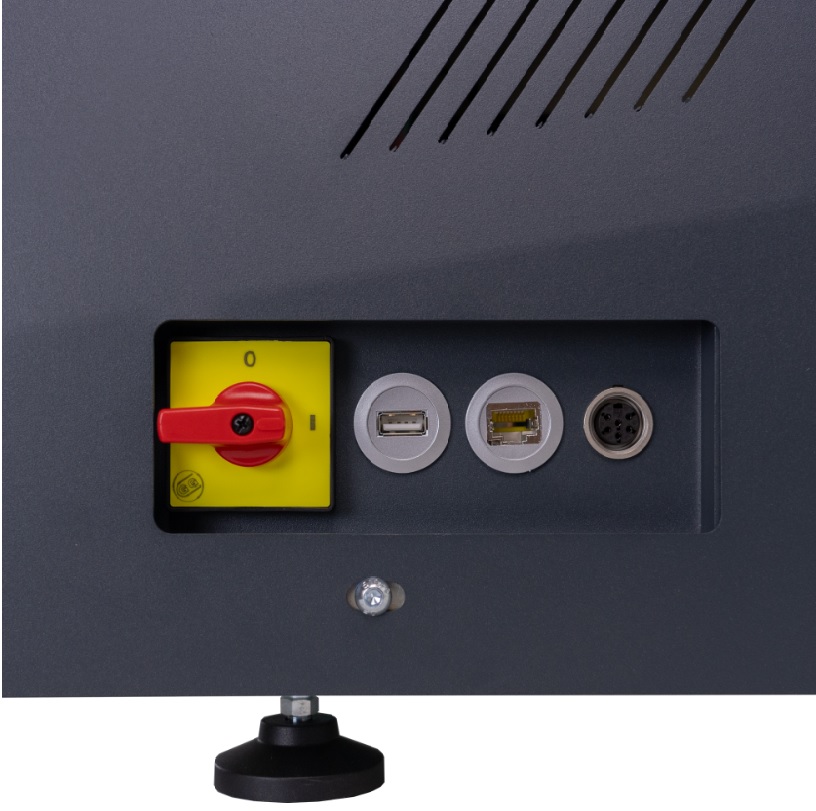

Detail of main switch, USB, Ethernet connections and load cell connection - AutoBBR Automatic electromechanical Bending Beam Rheometer

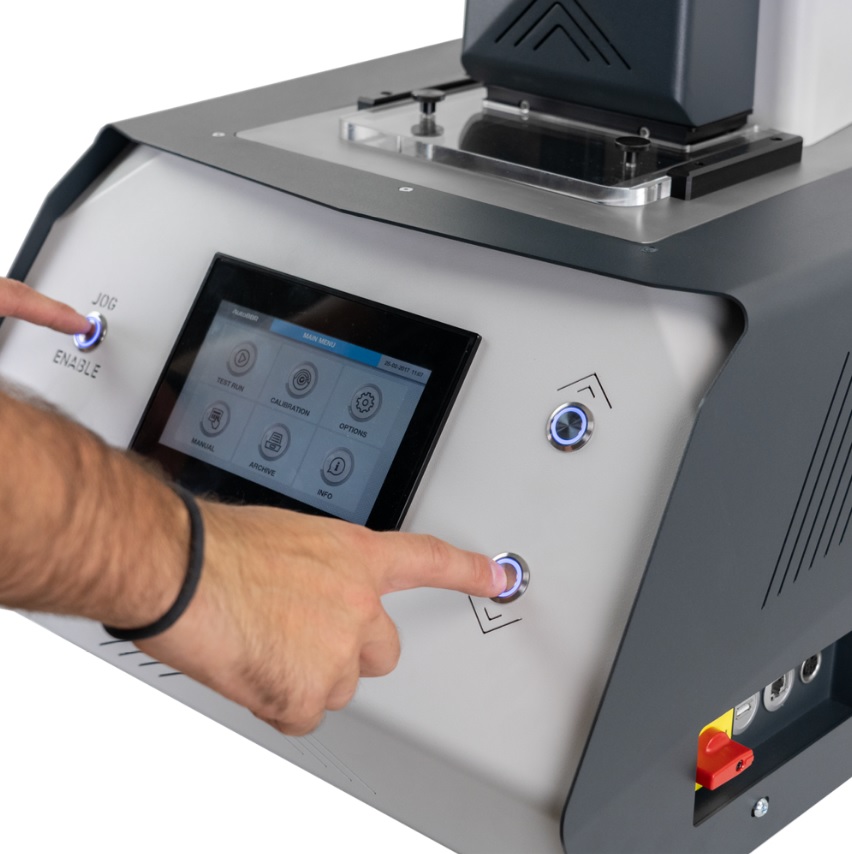

Enabling motorized BBR assembly - AutoBBR Automatic electromechanical Bending Beam Rheometer
AutoBBR Automatic electromechanical Bending Beam Rheometer
Test setup by large touchscreen display - AutoBBR Automatic electromechanical Bending Beam Rheometer
AutoBBR Automatic electromechanical Bending Beam Rheometer
Detail of main switch, USB, Ethernet connections and load cell connection - AutoBBR Automatic electromechanical Bending Beam Rheometer
Enabling motorized BBR assembly - AutoBBR Automatic electromechanical Bending Beam Rheometer

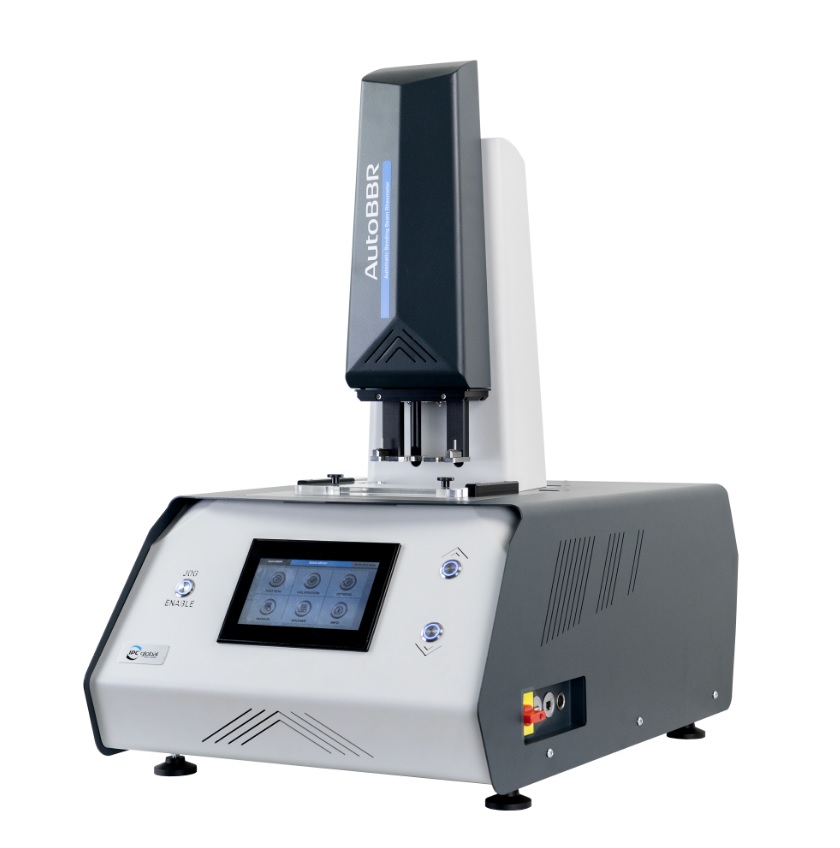

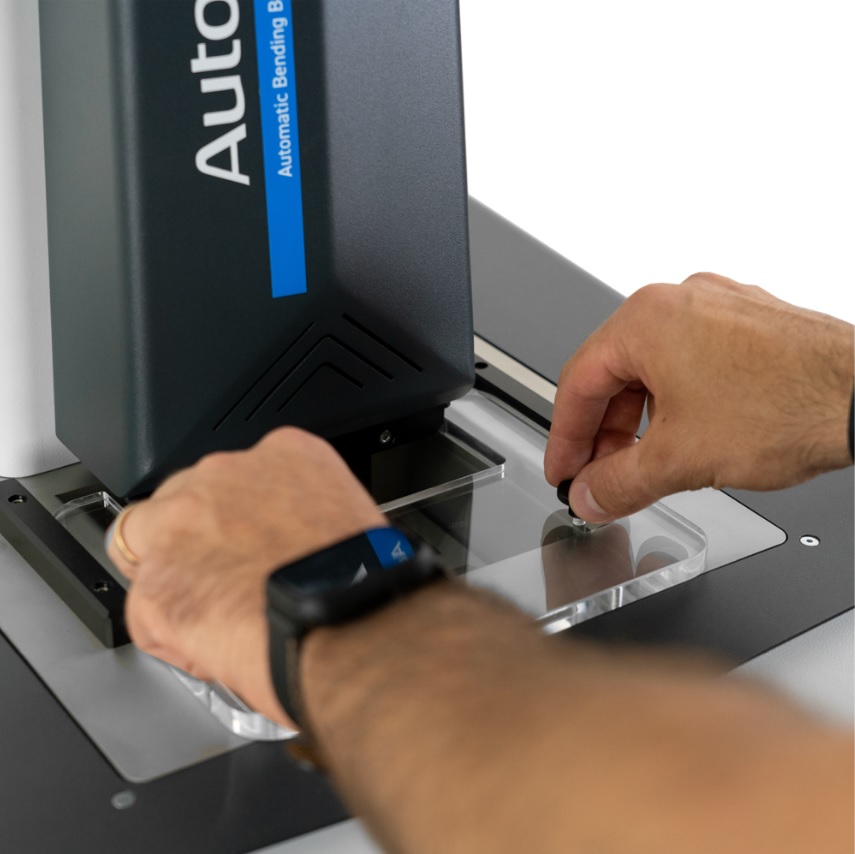

AutoBBR Automatic Electromechanical Bending Beam Rheometer

The AutoBBR by IPC Global is engineered to perform flexural tests on asphalt binder and similar specimens per ASTM D6648, AASHTO T313/TP125 and EN 14771.

These tests consist of a constant force being applied to a specimen in a chilled bath in order to derive specific rates of deformation at various temperatures.





Categories: , Tags: , , ,

Description

The AutoBBR Automatic Electromechanical Bending Beam Rheometer is engineered to perform flexural tests on asphalt binder and similar specimens per ASTM D6648, AASHTO T313/TP125 and EN 14771. These tests consist of a constant force being applied to a specimen in a chilled bath in order to derive specific rates of deformation at various temperatures.

The Bending Beam Rheometer BBR test provides a measure of low temperature stiffness and relaxation properties of asphalt binders. These parameters give an indication of an asphalt binder’s ability to resist low temperature cracking.

The AutoBBR basically consists of:

  • A three-point bending test apparatus, easily lifted from the base unit by motorized system, for easy specimen removal, calibration and maintenance operations.
  • A 7” colour touchscreen controller, inbuilt in the machine base, displaying load/displacement and temperature data and graphs, able to automatically perform the required standard or user programmable testing procedures.
  • A linear electromechanical actuator able to deliver the required load with high precision.
  • Low temperature fluid bath, inbuilt in the machine base.
  • An external chiller unit for the water-cooled thermoelectric temperature control system

A fully automatic system

The AutoBBR  can automatically perform standard test or customized tests. From the integrated controller, it is possible to set both load values and times for pre-load, test and recovery phases. Test data, including load, deformation and temperatures are displayed in real-time, together with relevant graphs. Test results can be saved into the large internal memory, saved on USB pendrive or transferred to PC with Ethernet connection.

Easy to calibrate

All verifications can be easily performed by the operator. The load cell is not temperature affected and the displacement measurement is compensated with regards to load cell deformation. Load cell verification can be automatically performed with dedicated procedure, and an external verification load cell is included with AutoBBR. It also includes a reference metal beam for displacement verification. The safety is granted by an emergency switch, and by safety buttons for AutoBBR assembly movement.

Main Features

A complete system

The AutoBBR is supplied complete with calibrated load cell, verification load cell and holder for automatic load verification, a complete specimen mould and crucible tongs to handle test specimens, displacement verification jig and reference bar for stiffness verification. Water chiller is also included.

  • Vertical load by linear electromechanical actuator, temperature control by thermoelectrical cooling bath
  • Motorized lifting of BBR assembly for easy specimen removal, calibration and maintenance operations
  • Fully stand-alone operation by integrated firmware for automatic test performance, without the need of an external PC
  • User interface by large 7” color touchscreen
  • External verification load cell included for automatic system load calibration

Specifications

Test configuration

  • Linear electro-mechanical actuator, 10N capacity, 20mm travel
  • Sample supports: 25 mm diameter, stainless steel, spaced 102.0 mm apart

Displacement specifications

  • Displacement range: 20 mm
  • Displacement resolution 1 μm
  • Displacement measurement is compensated with regards to load cell deformation

Load specifications

  • Loading shaft: In-line technopolymer with blunt point
  • Load capacity: Adjustable from 0 to 10 N
  • Load resolution: 1 mN
  • Load accuracy: ± 3 mN through the test cycle
  • Not affected by temperature
  • Automatic load calibration procedure (verification load cell included)

Water Bath Specifications

  • Range: ambient to -40 °C
  • Temperature measurement by PT100 probe
  • Resolution: 0.01 °C (0.1 °C display)

Controller specifications

  • 7’’ colour touchscreen controller
  • Real-time readings of displacement, load and bath temperature
  • User defined test cycle (pre-load, recovery, and test load & time)
  • Memory to store up to thousands test
  • Possibility to store and download test on USB
  • Connector for external load cell for automatic calibration
  • Ethernet connection

Weight and dimensions

AutoBBR

Dimensions: 765 x 580 x 720 mm (H x W x D)
Weight approx. 55 kg

Chiller

Dimensions: 480 x 500 x 755 mm (H x W x D)
Weight approx. 45 kg

Downloads

Ordering Information

81-PV5912 AutoBBR Electromechanical Bending Beam Rheometer (BBR), complete with frame with -40°C liquid bath, touchscreen display, calibration kit, a complete specimen mould and water chiller. Conforming to ASTM D6648, AASHTO T313 and EN 14771. 220V/50-60Hz/1F.

Accessories

81-PV5900/1 Additional AutoBBR specimen mould, complete with o-ring set
81-PV5900/2 Set of reference weight for reference load cell calibration
81-PV5900/3 Stand and water chiller cover for AutoBBR.
