Aggrameter Moisture Meter for Sand and Aggregates

Description

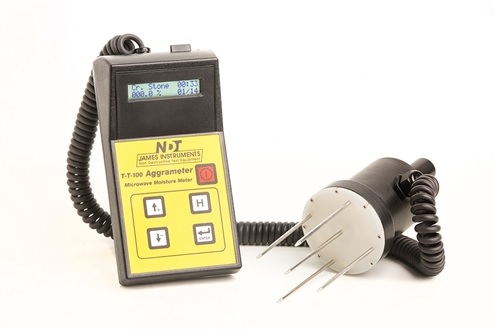

The Aggrameter moisture meter is a microwave meter for rapid determination of moisture content in sand and other fine and coarse aggregates.

The Aggrameter utilizes the latest microwave and microprocessor technology to measure moisture content in various fine and coarse-grained materials. The prongs of the probe are inserted into the material to be tested and the percentage of moisture content is instantaneously shown on the easy to read display.

An average of five to ten readings is normally taken in order to ensure a valid result. This output is converted by the integrated microprocessor and the moisture content is displayed directly as a percentage of dry weight. The Aggrameter comes calibrated for both sand and aggregate, and can be programmed by the user with up to ten different materials. The maximum aggregate particle size to be tested is approximately 9.5 mm in diameter.

The Aggrameter can store more than 150 readings – complete with time and date for future reference. Data can be recalled via USB interface to a personal computer.

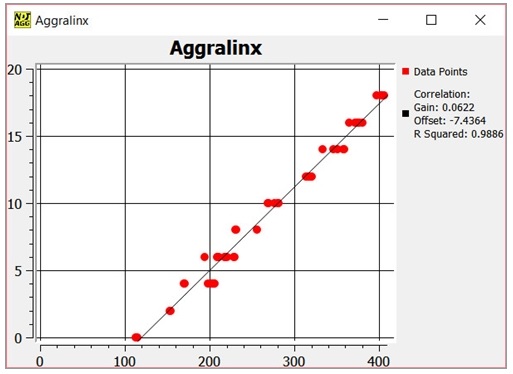

The downloadable Aggralinx software will allow connection of the instrument to a Windows 7, 8 or 10 personal computer. All the data stored by the unit can be uploaded to the personal computer for inclusion in quality control reports or any other form for later analysis. The software will also allow the user to ‘customize’ the Aggrameter® to a specific material. This will dramatically increase the accuracy of the unit.

Main Features

• Fast and easy to use; simply insert the prongs into the sand or aggregate being tested
• Accurate & Instantaneous

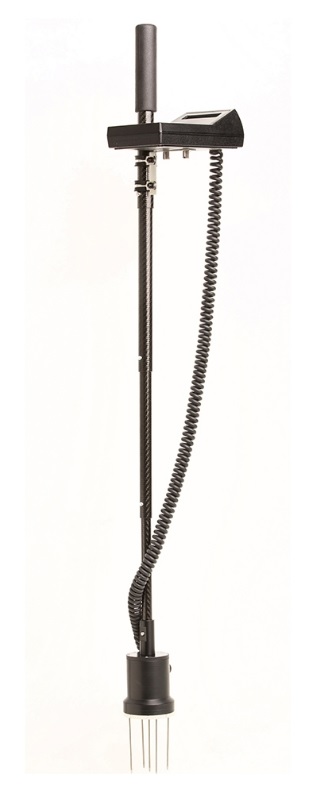

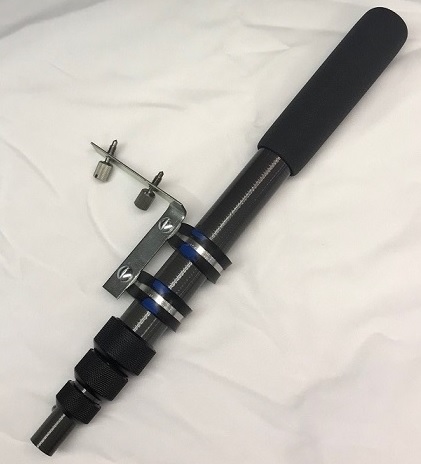

• Extension Pole for Less Fatigue
• Completely Portable
• Customizable for Different Materials
• Easy to Read Display

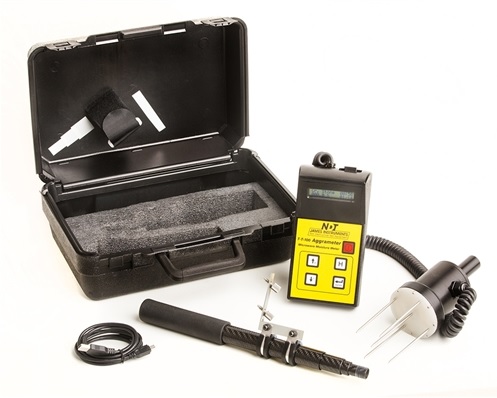

• Kit supplied in a robust field case

Specifications

Ordering Information

Downloads

Aggrameter® Brochure (PDF)
