Description
These Multipurpose compression / flexural testers have been designed for various applications in which a limited maximum load is requested, together with a large testing space such as, for instance, compressive strength on lightweight concrete and soil-cement specimens using, if necessary, the suitable accessories. It is also ideal for testing high strength cement and refractory specimens. The large testing space is ideal for performing, with the suitable accessory, splitting tests and flexural tests on concrete specimens.
Two versions are available:

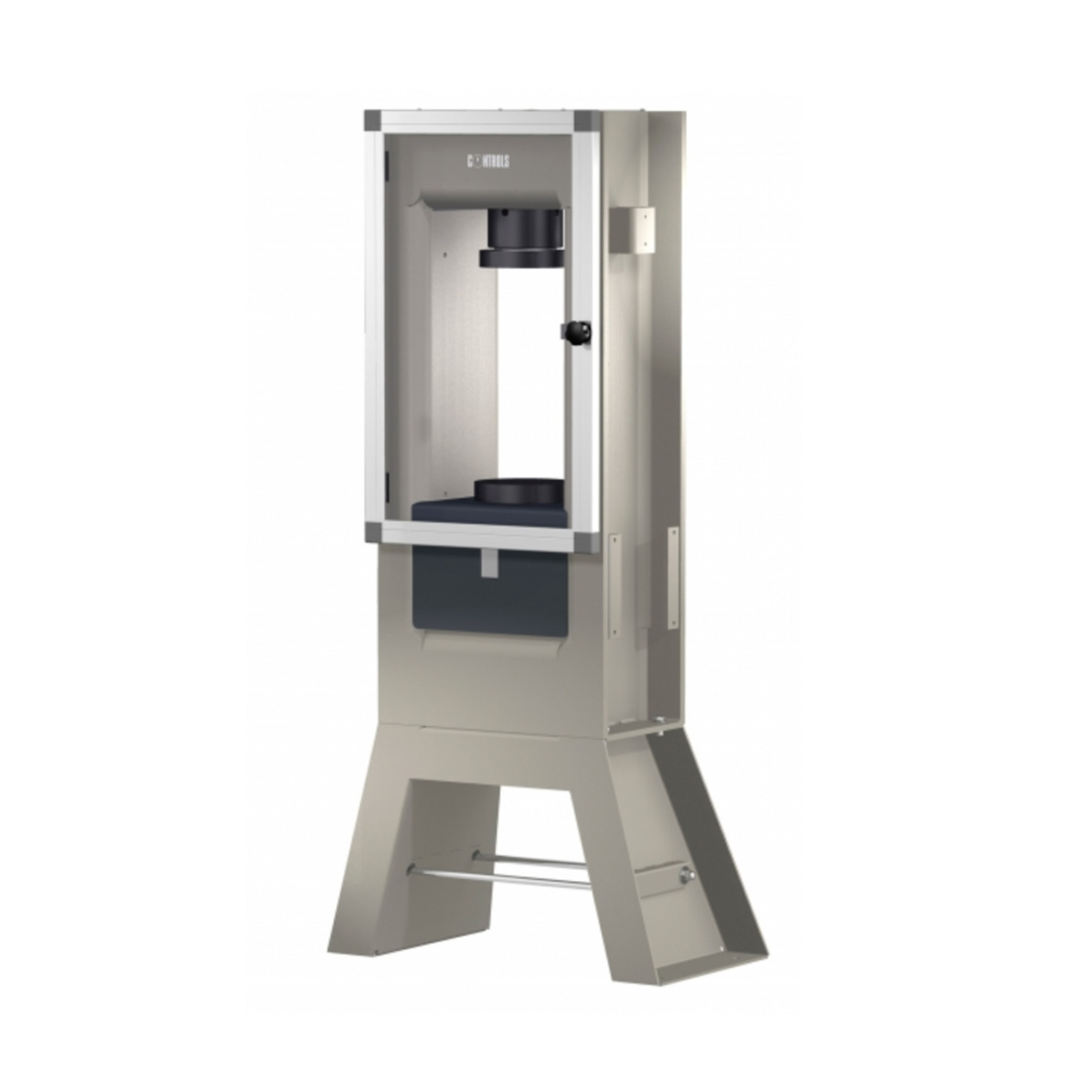

single compression station, 500 kN or 600 kN cap.:
for compression tests on low strength specimens.

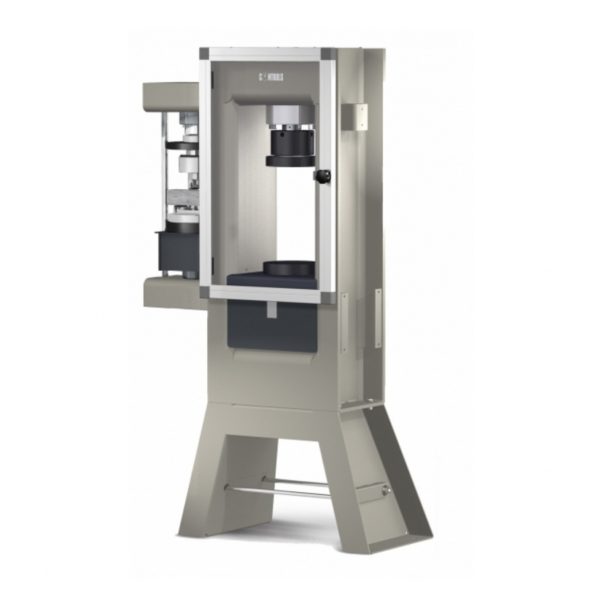

double station model, 600/15 kN or 500/15 kN cap.:
extends the possible applications to flexural tests on cement and compression tests on low strength specimens.
Frames and compression platens
High rigidity: solid one piece steel frame. Spherical seat allows free alignment at the initial contact with the specimen. For compression platens see Technical Specifications. Pedestal not included. See accessories.
Machine/Frames precision Class. EN 12390-4, ASTM E74
All frames, when connected to a suitable control console, are supplied calibrated to Class 1 starting from 10% of load scale as specified in the Technical Specifications table. By special calibration procedures, it is possible to extend Class 1 load measurement accuracy (see Upgrading Option and Technical Specifications).
Safety features

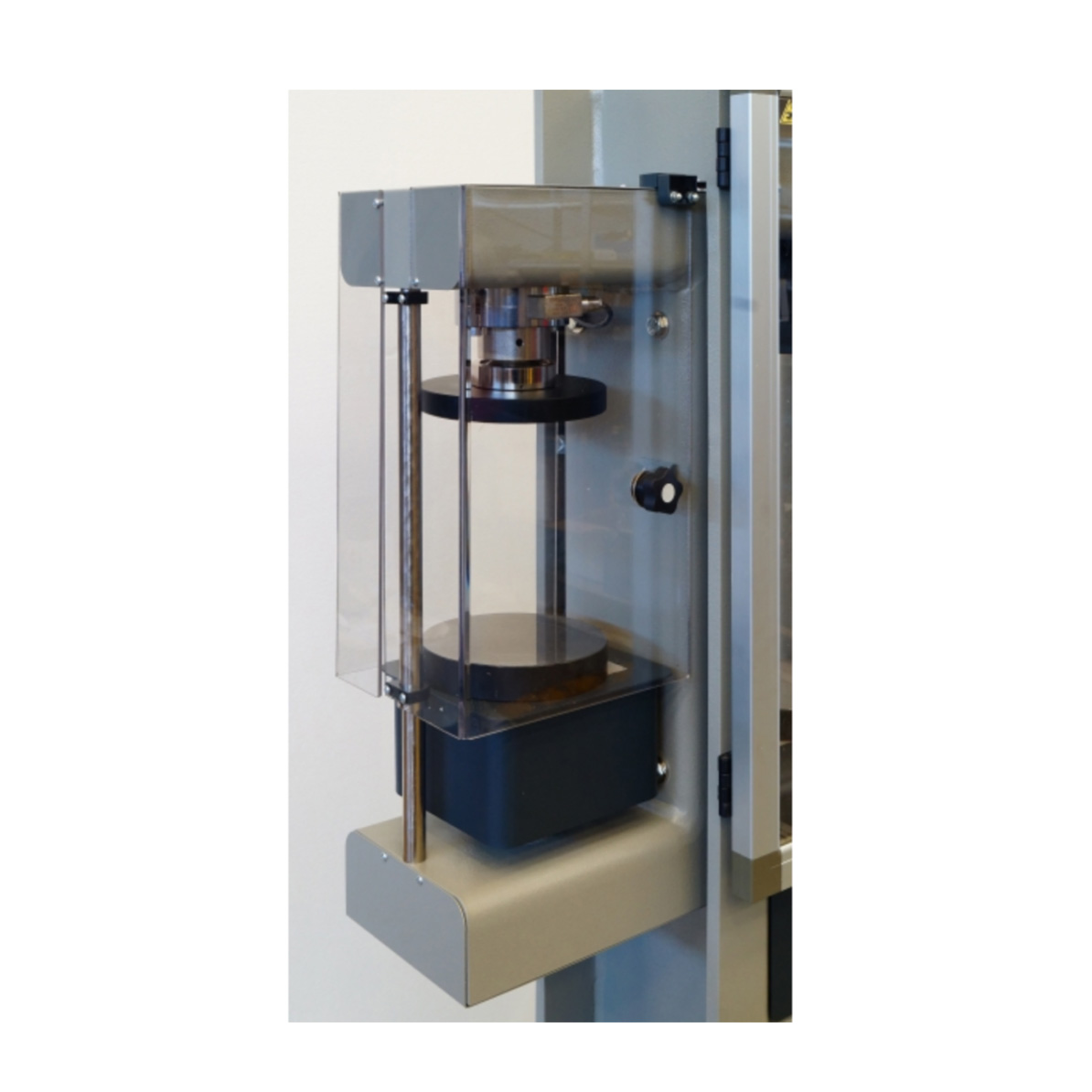

All models includes: max. pressure valve to avoid machine overloading; piston travel limit switch; front door and rear transparent fragment guard on the compression station. Fragment guard for flexure station is available as optional (see Accessories).
Connection to control consoles
The 15 kN load piston of the double station models, when connected to PILOT and AUTOMAX automatic Control Systems, requires a pressure regulator which, however, is not necessary for connection to Automax E Modulus, MCC and Advantest 9 consoles. See Upgrading options.
Technical Specs
| Single Chamber | Single Chamber | Single Chamber | |
| Models 50- | C92Z00 | C92Z10 | C93Z00 |
| Capacity [kN] | 600 | 500 | 600 |
| Load measurement sensor | Pressure transducer | Load cell | Pressure transducer |
| Class 1 range | 60 kN ÷ 600 kN | 50 kN ÷ 500 kN | 60 kN ÷ 600 kN |
| With 50-C0050/CAL | 6 kN ÷ 600 kN | 5 kN ÷ 500 kN | 6 kN ÷ 600 kN |
| With 50-C0050/CAL5 | – | – | – |
| With 50-C0050/1CAL | – | 0.5 kN ÷ 500 kN | – |
| Platens, dia. [ mm] | 165 x 30 | 165 x 30 | 216 x 50 |
| Hardness [HRC] | 55 | 55 | 55 |
| Flatness [mm] | 0.02 | 0.02 | 0.03 |
| Ram travel mm | 50 | 50 | 50 |
| Max vertical daylight [mm]* | 345 | 240 | 315 |
| Horizontal daylight [mm] | 265 | 265 | 265 |
| Overall dimensions (lxdxh) [mm] | 450x400x1100 | 450x400x1100 | 450x400x1100 |
| Weight approx. [kg] | 225 | 235 | 255 |
*To be adjusted using the suitable distance pieces. See accessories
| Double Chamber | Double Chamber | Double Chamber | |
| Models 50- | C92Z201 | C92Z401 | C93Z201 |
| Capacity [kN] | 600/15 | 500/15 | 600/15 |
| Load measurement sensor | P.transducer / Load cell |
Load cells | P.transducer / Load cell |
| Class 1 range | 60 kN ÷ 600 kN 1.5 kN ÷ 15 kN |
50 kN ÷ 500 kN 1.5 kN ÷ 15 kN |
60 kN ÷ 600 kN 1.5 kN ÷ 15 kN |
| With 50-C0050/CAL | 6 kN ÷ 600 kN | 5 kN ÷ 500 kN | 6 kN ÷ 600 kN |
| With 50-C0050/CAL5 | 0.75 kN ÷ 15 kN | 0.75 kN ÷ 15 kN | 0.75 kN ÷ 15 kN |
| Platens, dia. [ mm] | 165 x 30/165 x 30 | 165 x 30/165 x 30 | 216 x 50/165 x 30 |
| Hardness [HRC] | 55/55 | 55/55 | 55/55 |
| Flatness [mm] | 0.02/0.02 | 0.02/0.02 | 0.03/0.02 |
| Ram travel mm | 50/30 | 50/30 | 50/30 |
| Max vertical daylight [mm]* | 345/205 | 240/205 | 315/205 |
| Horizontal daylight [mm] | 265 | 265 | 265 |
| Overall dimensions (lxdxh) [mm] | 700x400x1100 | 700x400x1100 | 700x400x1100 |
| Weight approx. [kg] | 290 | 300 | 320 |
To be adjusted using the suitable distance pieces. See accessories
1When connected to AUTOMAX or PILOT Smart-Line control console, the pressure regulator model 65-L1400/X5 has to be used. See Upgrading options.
Accessories
TEST ACCESSORIES
Compression devices for cement and mortars
50-C9030
Compression device to test portions of 40x40x160 prisms broken in flexure to EN 196-.
Total height 195mm.
50-C9030/H
Compression device to test portions of 40x40x160 prisms broken in flexure to EN 196-1. High stiffness model.
Total height 225mm.
50-C9032
Compression device to test 50 mm and 2” mortar cubes to ASTM C109
Total height 195mm.
50-C9032/H
Compression device to test 50mm (2″) cubes to ASTM C109. High stiffness model.
Total height 225mm.
Flexural test devices for mortar beams
65-L0019/B
Flexure testing device for mortar prisms 40x40x160 mm, conforming to EN 196-1
65-L0019/C
Flexure testing device for mortar prisms 40x40x160 mm, conforming to ASTM C348
Flexural test device for concrete beams
NOTE: suitable for frames having 345mm min vertical daylight
50-C9010/C
Flexural test device for concrete beams 100x100x400/500 and 150x150x600/750 mm
Splitting tensile test devices
NOTE: suitable for frames having 345mm min vertical daylight
50-C9000/B
Splitting tensile test device for cylinders up to dia. 160×320 mm (6.3″x12.6″). Conforming to EN 12390-6 and ASTM C496
50-C9070/B
Splitting tensile test device for concrete block pavers and concrete cubes. Conforming to EN 1338 and EN 12390-6
MACHINE ACCESSORIES
Distance pieces to adjust the vertical daylight
65-L1000/20
Distance piece dia. 165×20 mm. Weight 3,2 kg
65-L1000/30
Distance piece dia. 165×30 mm. Weight 4,7 kg
65-L1000/40
Distance piece dia. 165×40 mm. Weight 6,4 kg
65-L1000/68
Distance piece dia. 165×68 mm. Weight 10,5 kg
50-C99/B
Machine/Frame pedestal
